This is a non-stocked item, please call +44 (0)1482 601030 or email sales@flowstar.co.uk for price and availability.

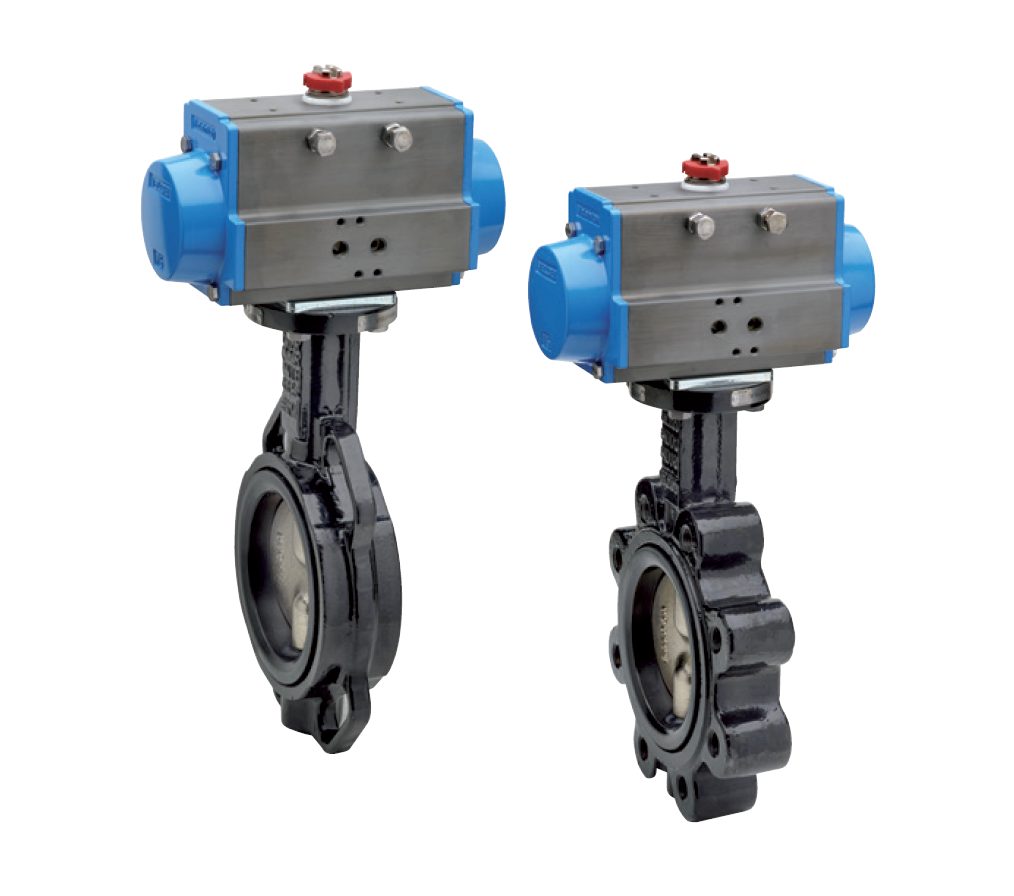

Valpres 600 series Butterfly valve. With an Iron body, Stainless Steel disc and stem and with an EPDM liner.
Valbia 82 series pneumatic actuator. Sized based on a minimum pilot air supply pressure of 5.5 Bar g. Rack and pinion design, Hard Anodised Aluminium body, Blue coated end caps, visual position indication, 1/8β BSP pneumatic connections. With bi-directional open/close travel stops. Suitable for a maximum air supply pressure of 8 Bar g. ATEX II 2GD T6 approved.
Mounting kit to suit.
All assembled and function tested.
Size range: 1.ΒΌβ to 24β
Body Types: Wafer Pattern to suit various flange drillings. Wafer Lugged pattern to suit PN16 flanges.
Body Materials: Wafer Pattern = Cast Iron. Wafer Lugged pattern = Ductile Iron.
Trim Material options: SG Iron disc. NBR or Viton liner.
Actuator options: Double Acting. Spring Return (Fail Close or Fail Open). Stainless Steel body and Painted options are also available.
