This is a non-stocked item, please call +44 (0)1482 601030 or email sales@flowstar.co.uk for price and availability.

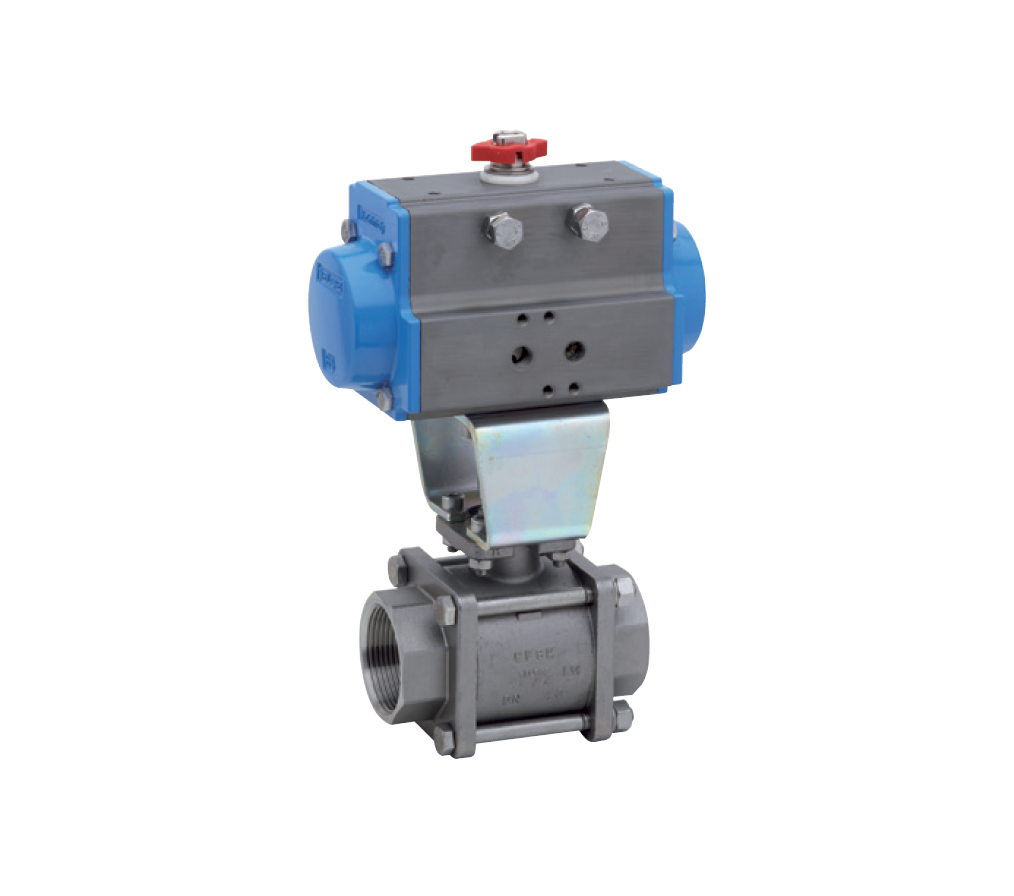

Valpres 71 series 3 piece full bore ball valve. With a Stainless Steel ball and stem, P.T.F.E. seats and P.T.F.E. / FKM seals. See options for end connections.
Valbia 82 series pneumatic actuator. Sized based on a minimum pilot air supply pressure of 5.5 Bar g. Rack and pinion design, Hard Anodised Aluminium body, Blue coated end caps, visual position indication, 1/8β BSP pneumatic connections. With bi-directional open/close travel stops. Suitable for a maximum air supply pressure of 8 Bar g. ATEX II 2GD T6 approved.
Mild Steel mounting kit and drive adaptor to suit.
All assembled and function tested.
Size range: ΒΌβ to 4β
Body Materials: Carbon Steel or Stainless Steel.
End Connections: BSP female / Socket Weld / Butt Weld.
Valve Options: The valves are available with a V ball for flow control. Different seat materials are available to suit many different applications. A version is available for Steam service.
Actuator options: Double Acting, Spring Return (Fail Close or Fail Open). Stainless Steel body and Painted options are also available.
