This is a non-stocked item, please call +44 (0)1482 601030 or email sales@flowstar.co.uk for price and availability.

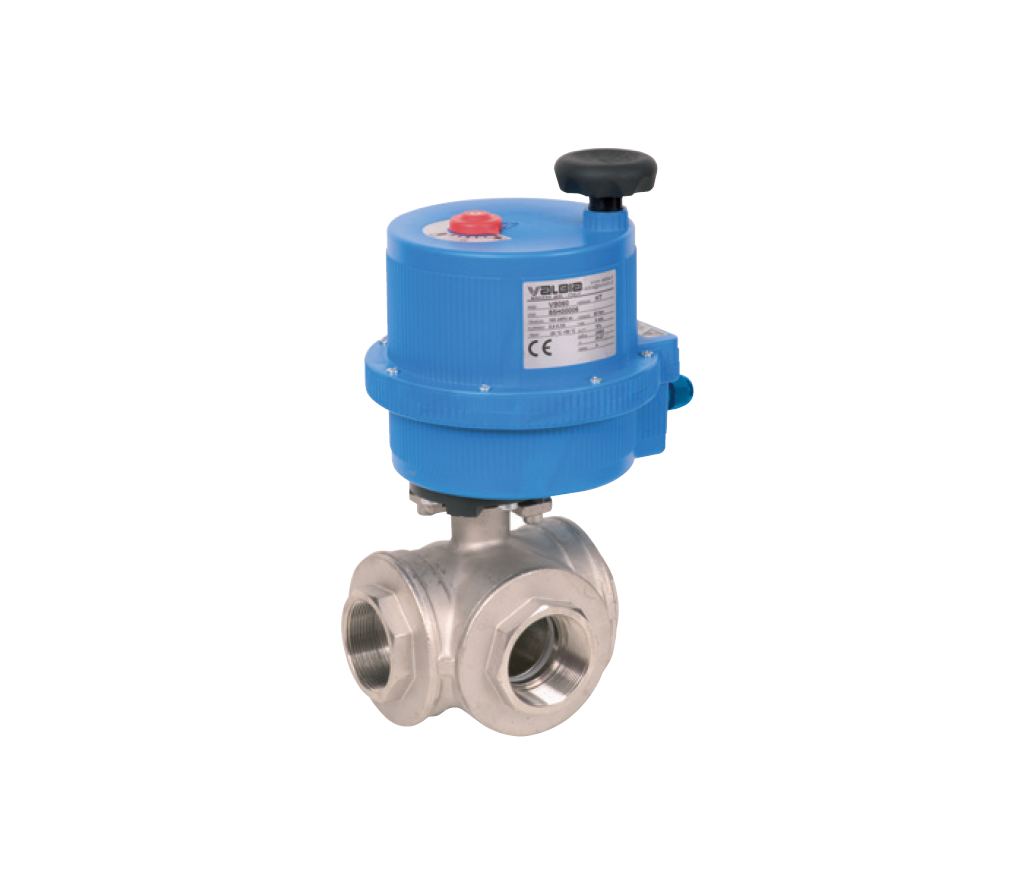

RB type 3500 (T port) / 3600 (L port) Nickel Plated Brass 3 way full bore ball valve. With a Hard Chrome Plated Brass ball, P.T.F.E. seats and P.T.F.E. /EPDM / FKM (Viton) seals. End connections screwed BSP female.
Valbia 85 series ISO direct mount quarter turn electric actuator. With a Techno-polymer housing. IP67 protection. With manual override and visual position indication. 2 x limit switches fitted for remote open and closed position indication. With an electronic torque limiter. With an internal anti-condensation heater. With PG11 electrical connections.
All assembled (Direct Mount) and function tested.
Specification
Size range: ΒΌβ to 2β
Port options: L or T
Operating Voltages: 12 Volt AC/DC - 24 Volt AC/DC β 110/240 Volt AC
Actuator options: On/Off (Fail fixed), On/Off with Battery back Up (Fail Close or Fail Open), Positioner 4 to 20 mA and 0 to 10 Volt DC signal, Battery Back Up and Positioner (as detailed above).
Valbia 86 series actuator with an Aluminium enclosure (all options as above).
