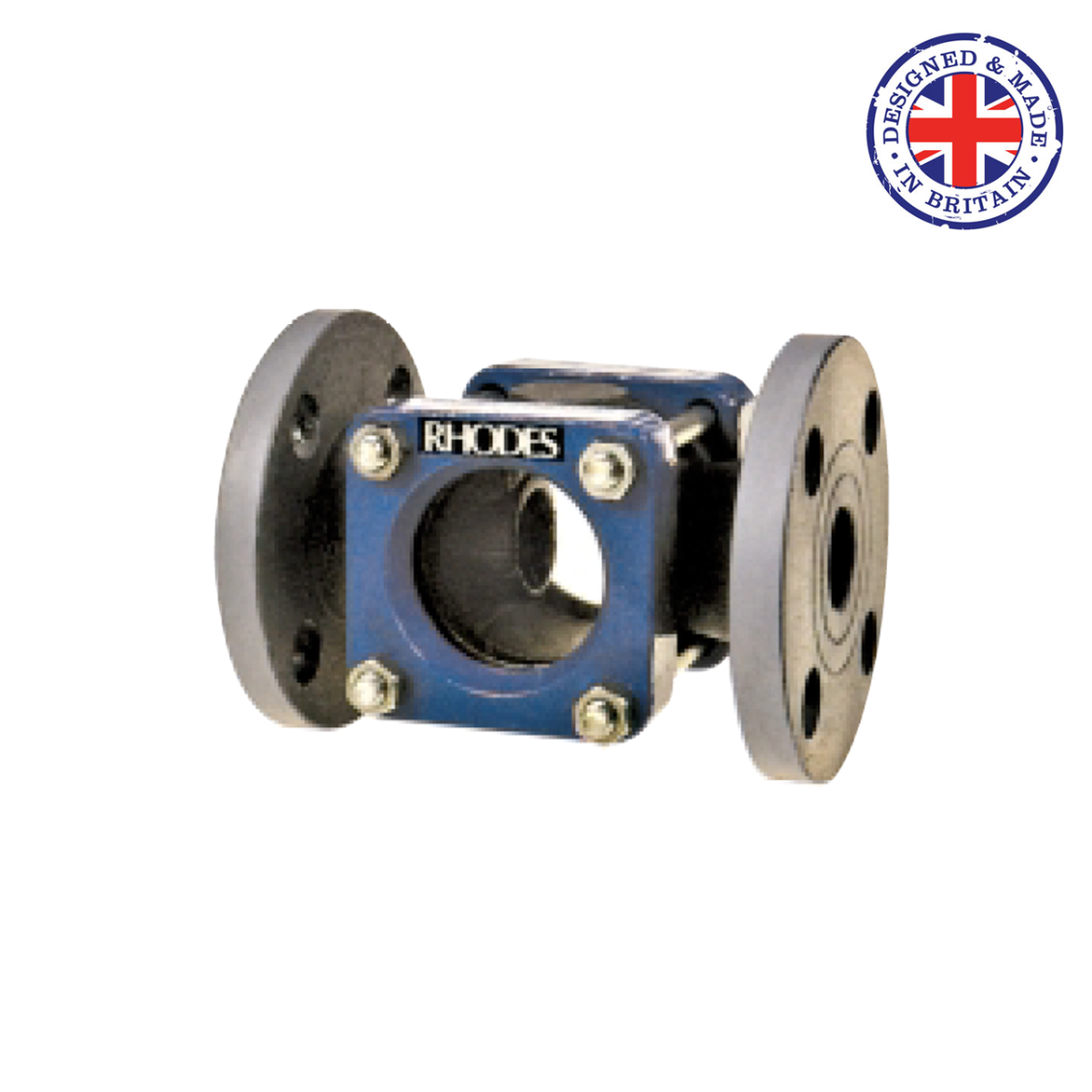

These two sided flow indicators feature an integral spout that produces a jetting action for turbulent flow thereby improving the viewing of clear liquids. The large viewing area allows the flow, colour and condition of the liquid to be observed and hence provide a check on product quality and consistency.
The indicators are suitable for both vertical and horizontal installation. The inclusion of a spout allows them to be used as drip indicators to show valve leaks, distillation or similar conditions. A variety of materials are available as standard. Rhodes Sight Glasses are fully UK manufactured with castings from the UK, unlike many of the competitors using components from the far east.
Sizes: 1/2" to 4"
Connections: Flanged (most types possible)
Materials: Cast Iron body, Mild Steel Covers, Graphite Gaskets
Maximum System Pressure: 16 Barg
Temperature: -10 degC to 180 degC
Notes: Fully PED compliant. Fully UK manufactured.
