This is a non-stocked item, please call +44 (0)1482 601030 or email sales@flowstar.co.uk for price and availability.

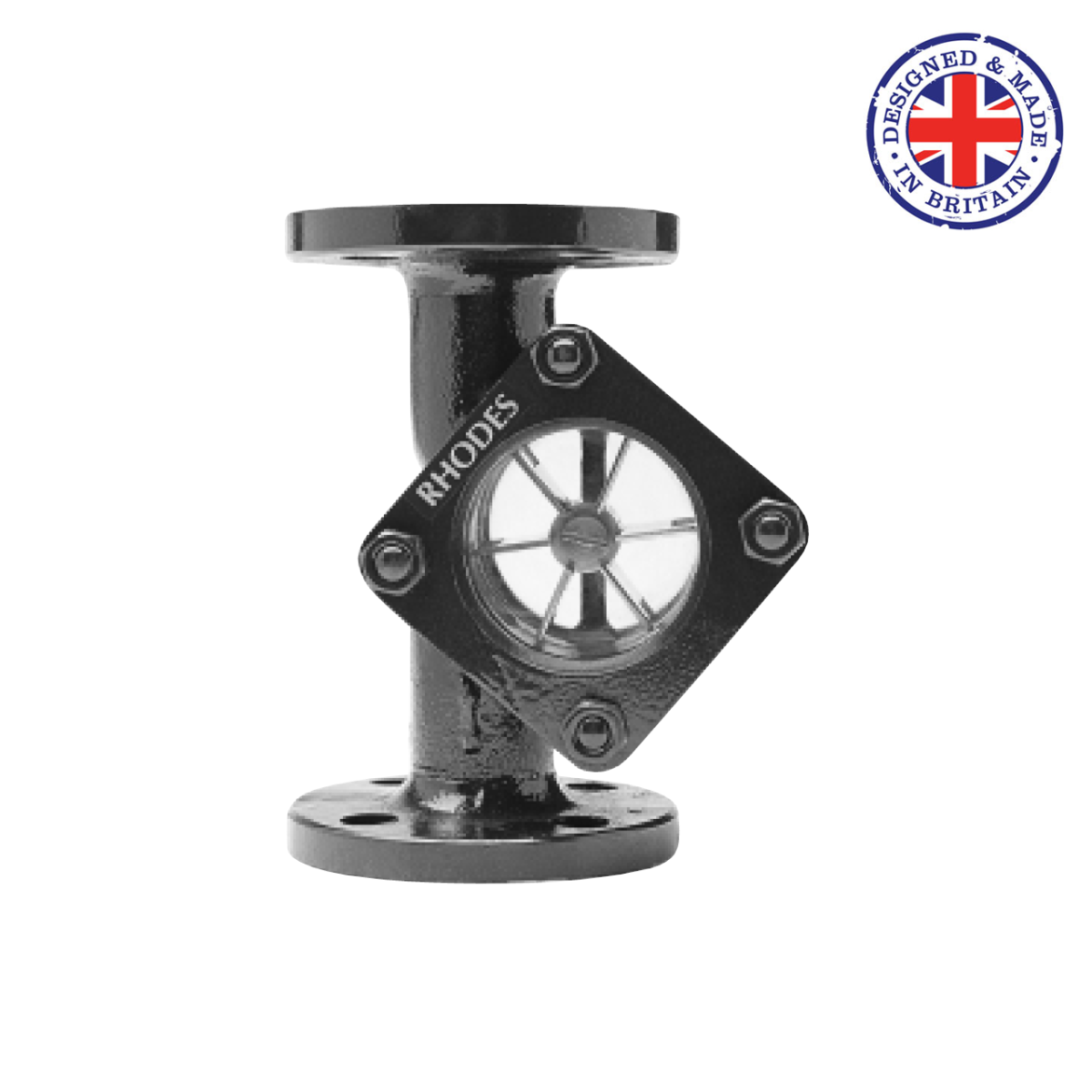

This double sided indicator is suitable for mounting in a horizontal or vertical position. Operating over a wide flow range it extends the duties of the smaller Figure 400 into larger applications and to higher temperatures.
It is available with flanged or screwed end connections and with a variety of material options. The stainless steel spinner and mounting pin give excellent corrosion resistance. Rhodes Sight Glasses are fully UK manufactured with castings from the UK, unlike many of the competitors using components from the far east.
Sizes: Screwed: 1/4" to 2" / Flanged: 3/4" to 4"
Connections: Screwed or Flanged (most types possible)
Materials: Cast Iron, Gunmetal, Carbon Steel, Stainless Steel
Maximum System Pressure: Upto 20 Barg depending on the material and size (see datasheet)
Temperature: Upto 250 degC depeding upon the material (see datasheet)
Notes: Fully PED compliant. Fully UK manufactured.
