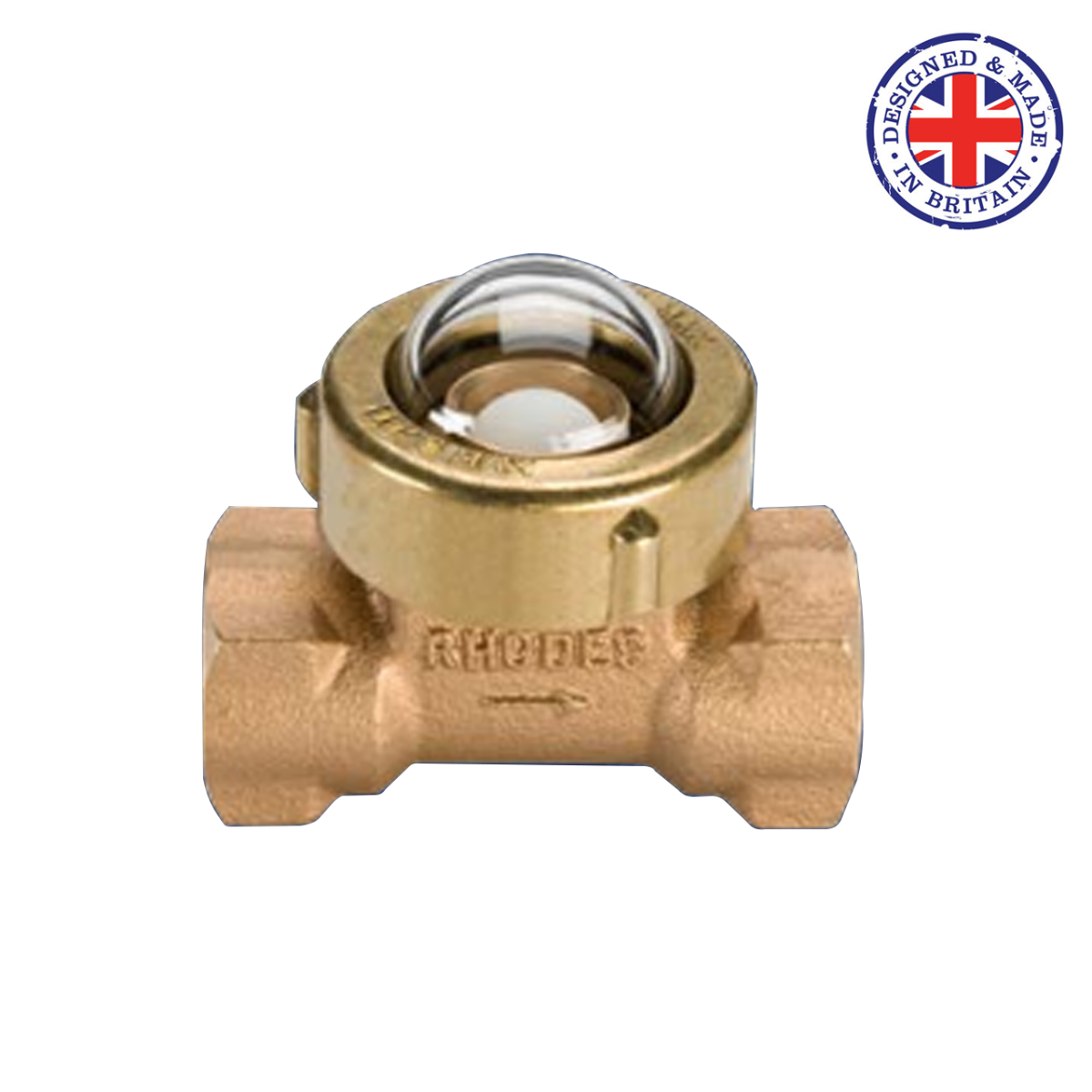

A low cost, ‘entry level’ sight flow indicator with a high sensitivity ball operating from 0.7 l/m (water). The nitrile seals and PTFE ball give excellent chemical resistance which is further enhanced in the stainless steel version by the use of borosilicate glass as standard.
These compact sight flow indicators are used extensively in plant protection applications to show coolant or lubrication flow to pumps,compressors and engines. The ‘ball type’ needs to be mounted in the horizontal plane. Rhodes Sight Glasses are fully UK manufactured with castings from the UK, unlike many of the competitors using components from the far east.
Sizes: 1/4", 3/8", 1/2", 3/4", 1"
Connections: Female BSPT Inlet x Female BSPT Outlet
Materials: Gunmetal or Stainless Steel Body, Nitrile O Ring
Maximum System Pressure: 7 Barg (Gunmetal) / 16 Barg (Stainless Steel)
Temperature: 100 degC Max
Notes: Fully PED compliant. Fully UK manufactured.
