This is a non-stocked item, please call +44 (0)1482 601030 or email sales@flowstar.co.uk for price and availability.

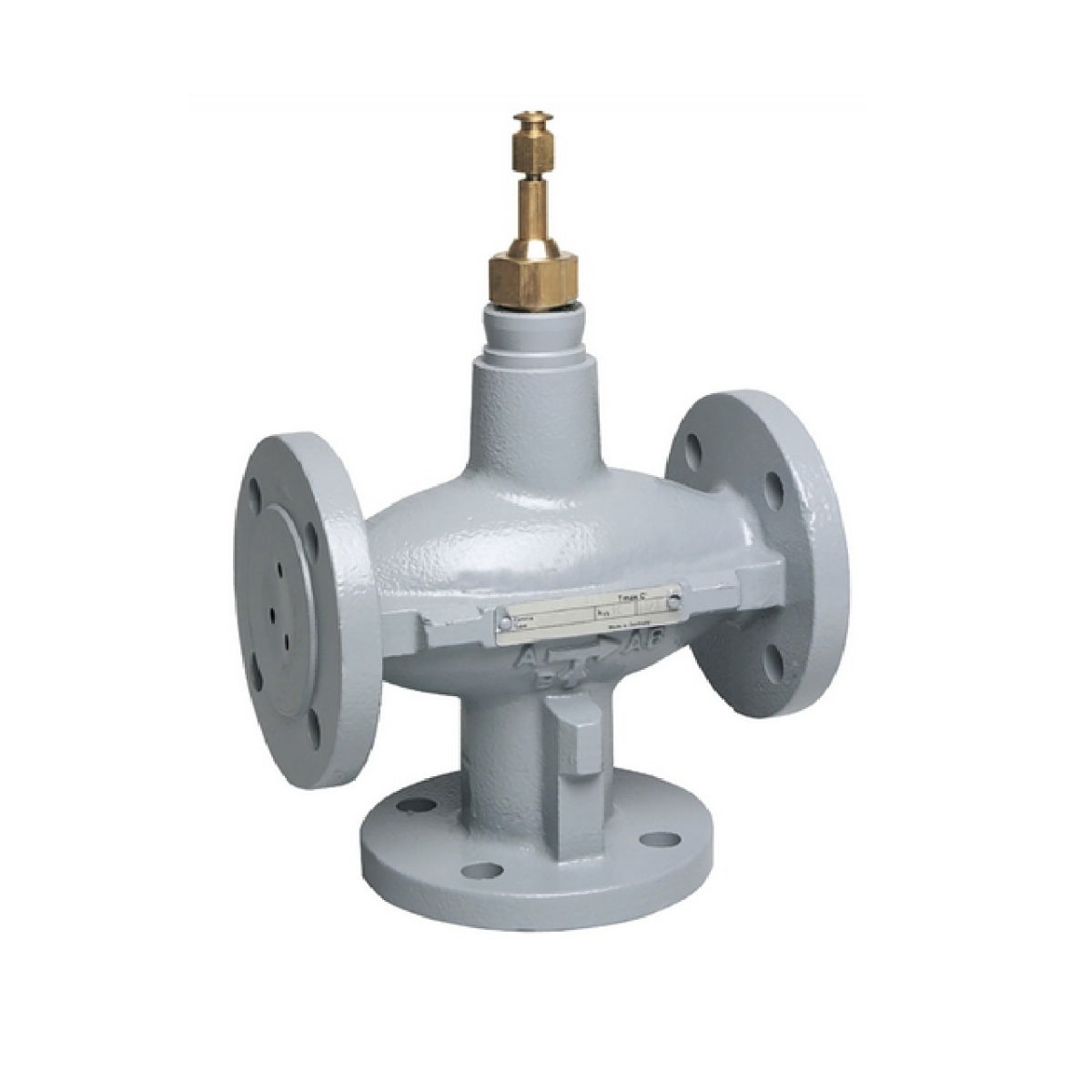

These Resideo three-port mixing valves, also known as Centra Linear Valves, are used for modulating control of hot/chilled water or steam in heating, ventilation, and air conditioning systems. The valves can be operated by linear actuators series ML64... and ML74...
Cast iron body with flanged end connections
Low seat leakage rate
Metal-to-metal seating for long life span
Self-adjusting packing
Accurate positioning to ensure state-of-the-art temperature control
Easy mounting of direct-coupled electric actuators
Constant total flow throughout full plug travel
Materials: Stem made of stainless steel, valve body made of cast iron (GG25), flanged per ISO 7005-2
Part numbers: XF40A25, XF40B25, XF40D25, XF50A40, XF50B40, XF50D40, XF65A63, XF65B63, XF65D63, XF80A100, XF80B100, XF80D100
