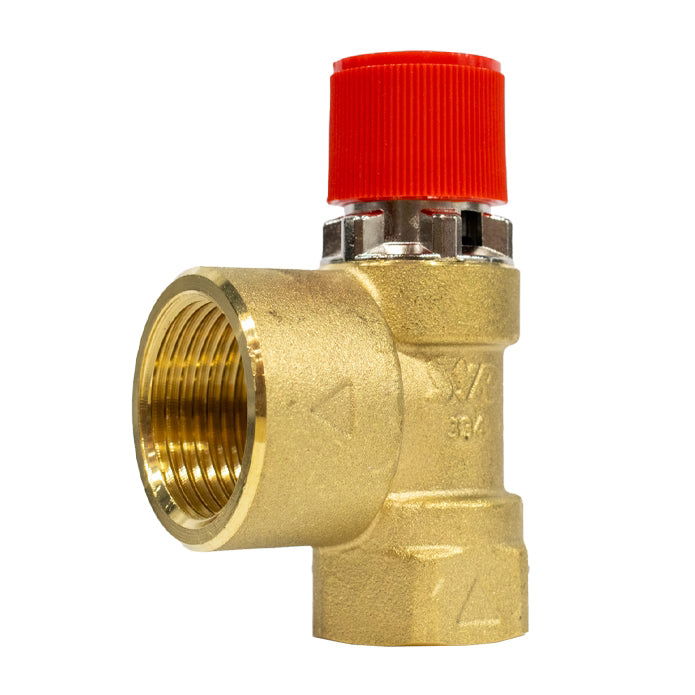

100 Series High Capacity Sealed Heating System Pressure Relief Valve
Discharges water off the system at a set pressure in the event of system over pressurisation (high for larger capacity systems) Reliance Valves 100 Series Pressure Relief Valves are made from hot pressed brass and are predominantly used to protect closed-circuit wet heating systems from overpressure. The outlet is one size larger than the inlet to ensure high discharge flow rates.
It has a separate seal seating from the diaphragm to give improved scaling resistance and a cover which is made from OT58 brass. Available in a variety of sizes to suit most installations, it also has a pressure range from 2.5 - 5.0 bar, with the response pressure indicated on the twist cap. The valve size is determined by the heat output of the boiler as shown in the maximum heating capacity table.
Features and benefits:
- High flow design for larger capacity systems
- Outlet is one size larger than the inlet for high capacity discharge
- Provides protection against over pressurisation in wet heating systems
- Diaphragm design gives improved resistance against scale
- Cartridge design gives ease of service and replacement without the need to reset the response pressure
- Set pressure range from 2.5 - 5.0 bar to suit any system requirement
- High lift design for increased discharge capacity
- Suitable for heating applications only
Specification
Size: 3/4" x 1"
Connections: BSP Female Inlet x BSP Female Outlet
Materials: Hot pressed DZR Brass
Medium: Water
Set Pressure: 3 Barg
Temperature: +140 degC
Product Code: PREL100014
Notes: WRAS approved
