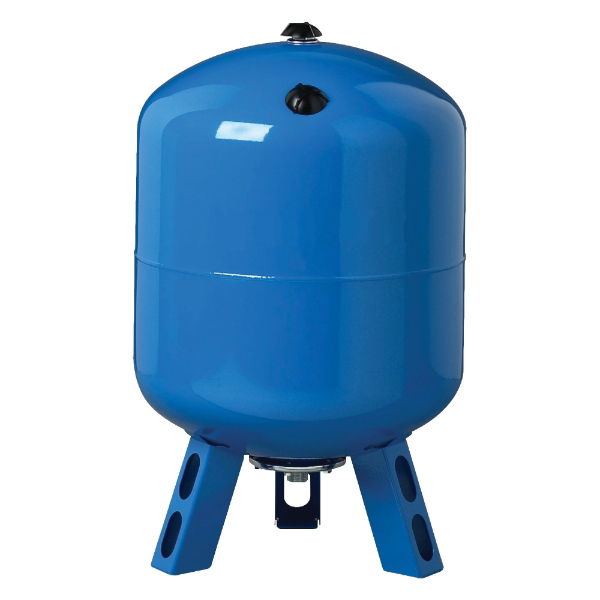

Stainless steel expansion vessel for potable water applications.
Reliance Valves Aquasystem Replaceable Membrane Potable Water Expansion Vessels are designed to carry the extra load within a water system when the water is heating and increasing in volume. These expansion vessels ensure safe operating levels by preventing pressure from building up in sealed heating systems and cold water systems.
The vessels have a replaceable membrane inside that prevents the water from causing corrosion or contamination, ensuring the water remains safe for human consumption. This replaceable membrane also means that the vessel can be easily serviced without having to be removed to allow quick and easy servicing in situ.
Features and benefits:
- Stainless steel bolted flange prevents corrosion
- Extra wide membrane opening prevents noise caused by restricted flow
- Internal membrane prevents any water contact with the steel shell, stopping internal corrosion
- A wide range available from 2 to 5000 litres, covering all applications
- All versions supplied with a replaceable membrane so that the vessel can be serviced without being removed
- Pre-charge valve for topping up air pressure
- Suitable for hot and cold water only
Specification
Capacity: 50 Litre
Colour: Blue
Pre-Set Pressure (Bar): 3
Max Pressure (Bar): 10.0
Minium Temperature: -10°C
Maximum Temperature: 99°C
Height: 656mm
Diameter: 365mm
Water Connection: 3/4" MBSP
Product Code: XVES050080
Materials
Shell: Epoxy Coated Shell
Membrane: EPDM
Bolted Flange: Stainless Steel
Standards and Approvals
- WRAS approved up to 1000 litres
- CE marked according to Directive PED 97/23/CE
- TUV Certified
- 1000 - 5000 litre models materials comply with BS 6920
