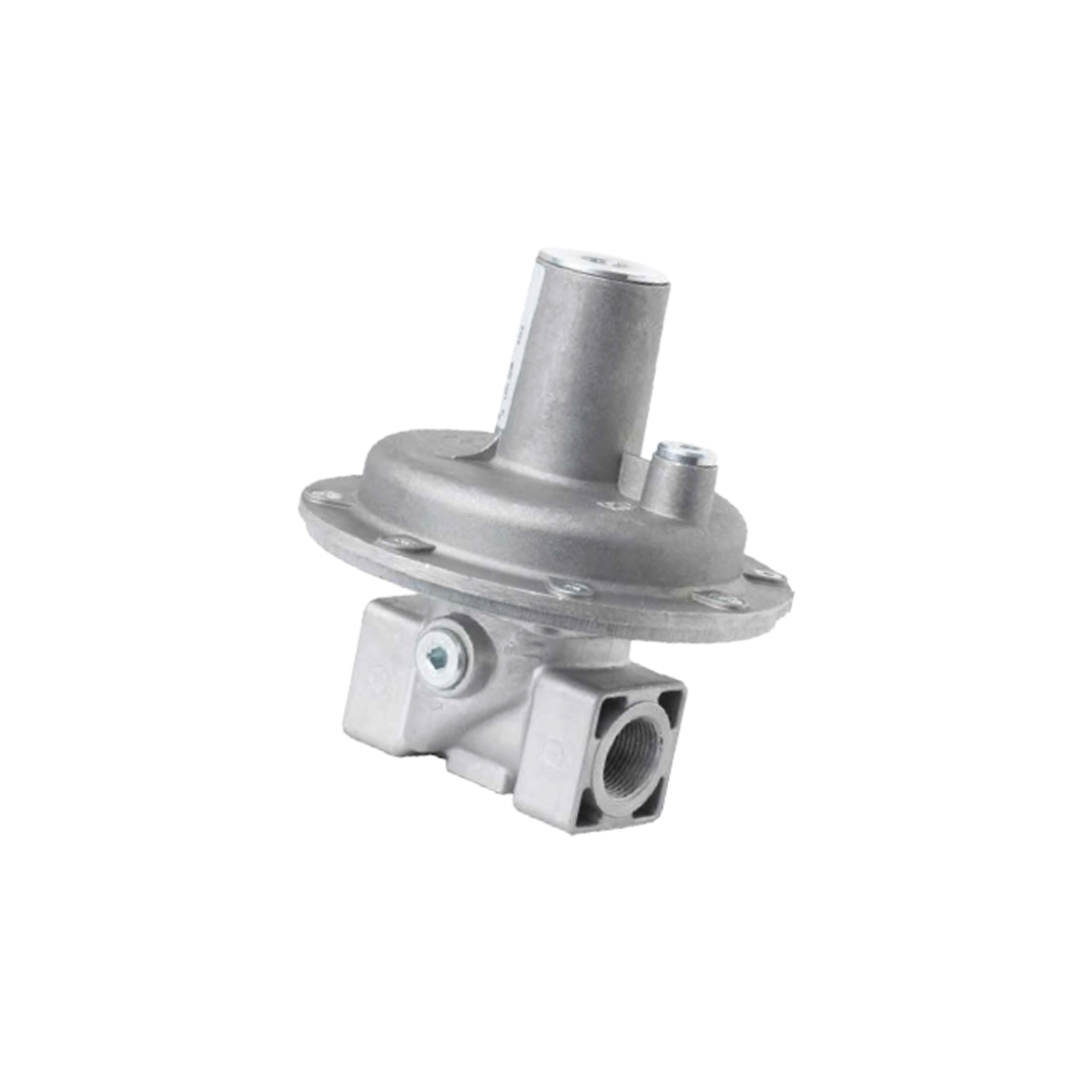

The spring-loaded MEDENUS safety relief valve SL 5 is used for reducing short-term pressure surges upstream of gas consumption
systems or preventing an inadmissibly high pressure increase due to escaping gas, and is intended to protect downstream
system components from excessive pressure levels.
The safety relief valve is composed of the actuator housing and the “control device” functional unit. In the closed position,
the gas flows into the actuator housing in the direction of the arrow.
There the inlet pressure acts on the underside of the diaphragm, while the spring set with the adjusting screw acts against it. If the inlet pressure force is higher than the spring force, the diaphragm lifts, the valve opens releasing gas into the discharge line. After releasing the pressure surge, the inlet pressure drops and the valve closes again.
Specification
Sizes: 3/4" & 1"
Connections: Female BSP Inlet x Female BSP Outlet (NPT available)
Medium: Gas
Set Pressure: 3 Barg (Max)
Temperature: -15 to +60 degC
