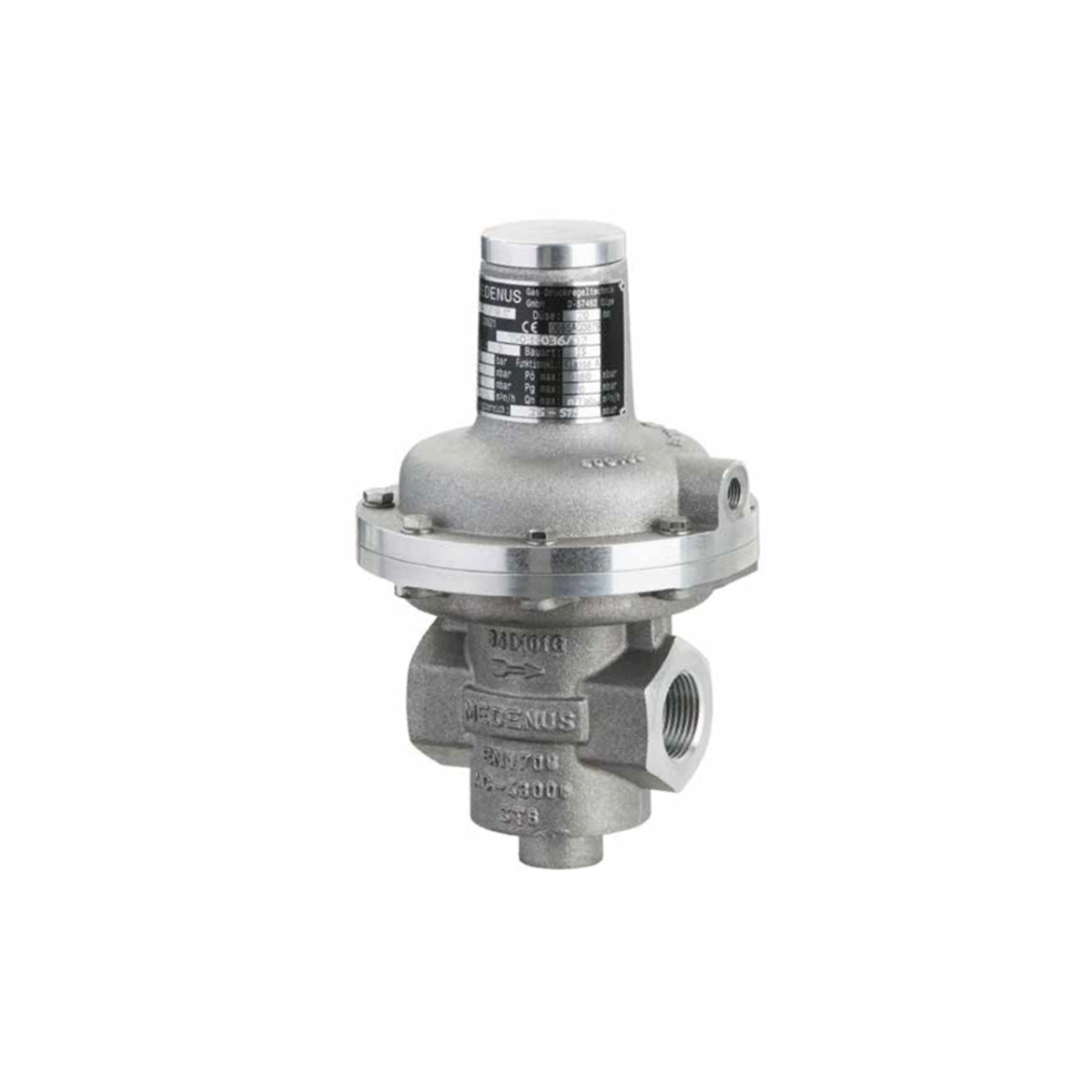

The spring-loaded MEDENUS safety relief valve SL 10 is used for reducing short-term pressure surges upstream of gas consumption
systems or preventing an inadmissibly high pressure increase due to escaping gas, and is intended to protect downstream
system components from excessive pressure levels.
The safety relief valve is composed of the actuator housing and the “control device” functional unit. In the closed position, the gas flows into the actuator housing in the direction of the arrow. The internal measurement line port is used to pass the outlet pressure to be regulated to the bottom of the main diaphragm of the safety relief valve. It compares the actual value with the command variable preset by the force of the set point spring. The set point required in each case is set via the setting screw. When the set point is exceeded, the measuring unit will lift the actuator, allowing the gas to escape via the blow-off line. If the actual value falls below the set point, the measuring unit will close the actuator again automatically.
Specification
Sizes: 1", 1.1/2" & 2"
Connections: Female BSP Inlet x Female BSP Outlet
Medium: Gas
Set Pressure: 3.5 Barg (Max)
Temperature: -20 to +60 degC
