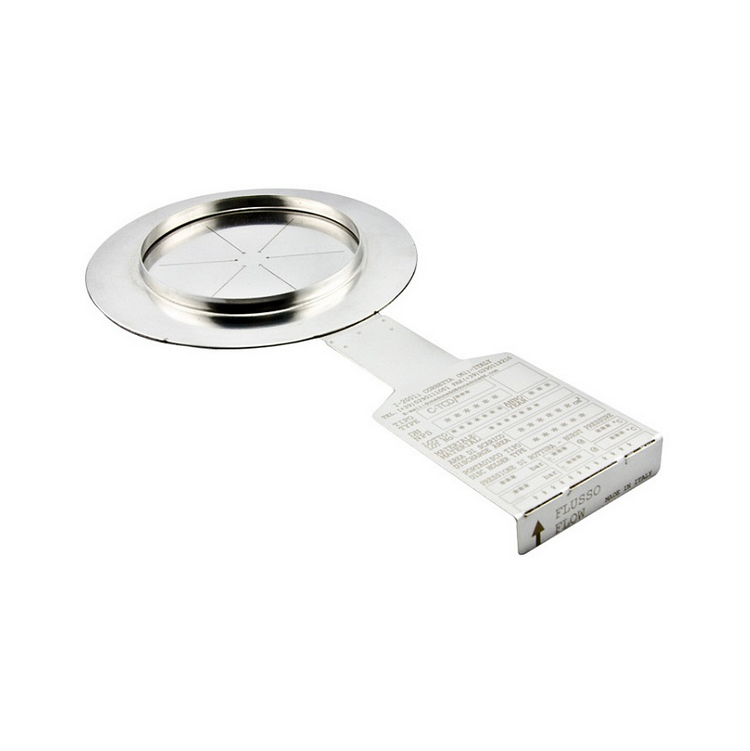

FSTCDFA rupture discs are composite discs formed by four parts: a
slotted, perforated metal part a seal membrane (usually in PTFE but also
available in many other metallic or non-metallic materials) a
protection section a calibration ring This disc has been designed
especially to be mounted on road or rail tankers containing liquids and
gas in static, cycling and pulsating conditions. FSTCDFA discs react to
excessive pressure with total opening in a few milliseconds. They are
therefore recommended for valve protection. Supports may be provided for
vacuum or counter-pressure protection.
Sizes: 2" (DN50), 2.1/2" (DN65), 3" (DN80)
Materials: Stainless steel / Membrane: PTFE, PFA
Rupture Pressure: from 3 to 5 bar g
Tolerance: +/- 5 %
Temperature: up to 265 °C
Operating Margin: up to 80%
Vacuum Support: Available
Fragmentation: No (membrane only)
Use under valve: Yes
Corrosion Resistance: Good - can be protected with a PTFE membrane
Linings: Yes
Container: Directly mounted
Rupture Sensor: Electrical, Magnetic, Inductive, Optical
PED Certification (CE Stamp): Available
ATEX EX II 2 GD Certification: Available
