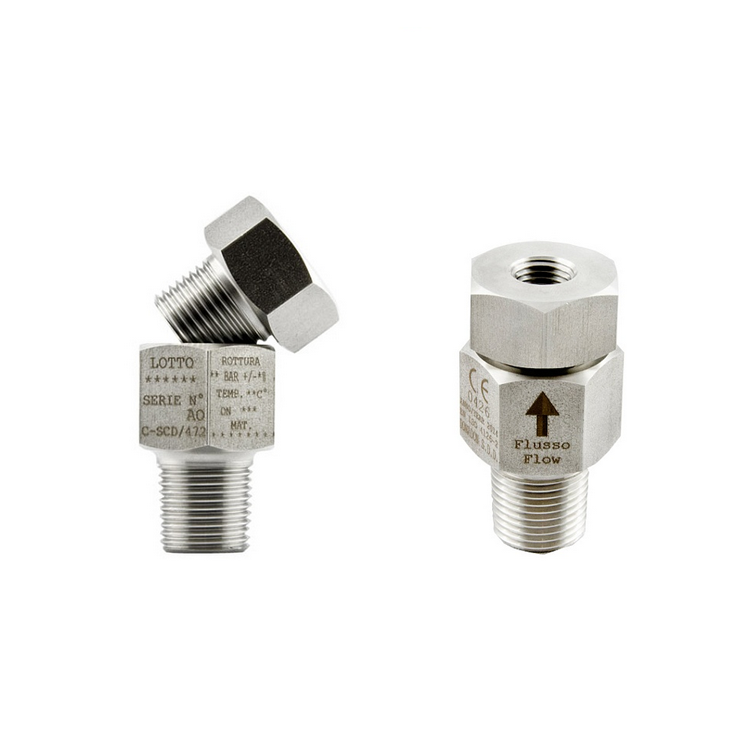

FSSUMSU sealed units are formed by a threaded connector, formed by two
pieces, containing a calibrated rupture disc. The rupture disc is
inserted in the threaded and sealed container. These units have been
designed to make small disc mounting in plants easy and reliable, to
simplify handling without need of specialised personnel. FSSUMSU sealed
units are suitable for use with gases and liquids in cycling and
pulsating conditions. FSSUMSU sealed units react to over-pressure in a
few milliseconds and are recommended for protection of plants, plant
equipment and containers.
Sizes: (DN3) to 1.1/2" (DN40)
Materials: Stainless steel
Rupture Pressure: 20 - 1150 bar g (depending on material and diameter)
Tolerance: +/- 5 % to +/- 10%
Temperature: Upto 480 degC
Operating Margin: 80%
Vacuum Support: No
Fragmentation: Yes (Without fragmentation in special execution)
Use under valve: No
Corrosion Resistance: Very good
Container: Included, direct mounting
PED Certification (CE Stamp): Available
