This is a non-stocked item, please call +44 (0)1482 601030 or email sales@flowstar.co.uk for price and availability.

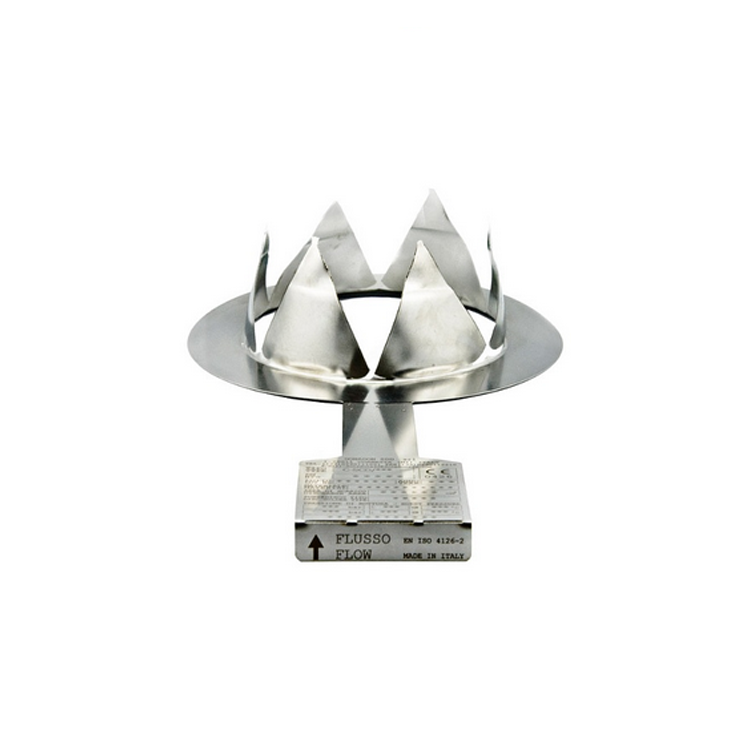

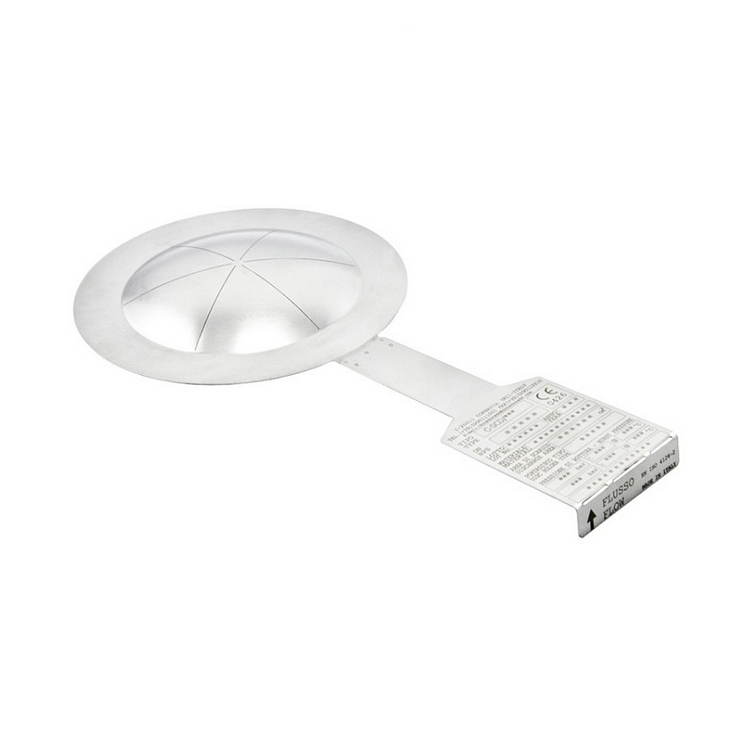

These discs have micro-scored calibrated sections opening in petals, characterised by the presence of 4, 6 or more radial scores. This allows for better opening and reduces the risk of petal detachment. This makes the rupture discs especially suitable at high bursting pressures. They can be used with gas and liquids with cycling and pulsating conditions without reduction of safety margins. FSSCDF discs react to excessive pressure in a few milliseconds without fragmentation. They are especially suited for protection of safety valves. These rupture discs allow for a ratio between operating and bursting pressure up to 85% and have a very good resistance to corrosion. Corrosion resistance may be additionally improved with a PTFE lining. In addition, these rupture discs can, in many cases, be subject to absolute vacuum conditions without need for supports.
Specification
Sizes: 1" (DN25) to 36" (DN900)
Materials: Stainless steel, Alloy 201, Alloy 400, Alloy 600, Alloy 625, Alloy C276, Titanium
Rupture Pressure: 2 bar g (30 psi g) - 413 bar g (6000 psi g) (depending on material and diameter)
Krl: 1.33
Tolerance: from +/- 5 % to +/- 20%
Temperature: -196 degC to 600 degC
Operating Margin: up to 85%
Fragmentation: No (will not break up on bursting)
Use under valve: Yes
Corrosion Resistance: Very good
Linings: Yes
Container: FSHI/A, FSHI/P, FSHI/F, FSHTC
Rupture Sensor: Electrical, Magnetic, Inductive, Optical
ASME Certification (UD Stamp): Available
PED Certification (CE Stamp): Available
ATEX EX II 2 GD Certification: Available
