FSLPDULP model discs are a simple, reliable, accurate and economical
solution for applications requiring extremely low pressure protection
(positive or negative). Their primary use is to protect processing and
storage tanks, atmospheric vessels and silos with low design pressures,
and therefore only able to withstand slight pressures and vacuums,
against implosion or rupture. A specially interesting application is in

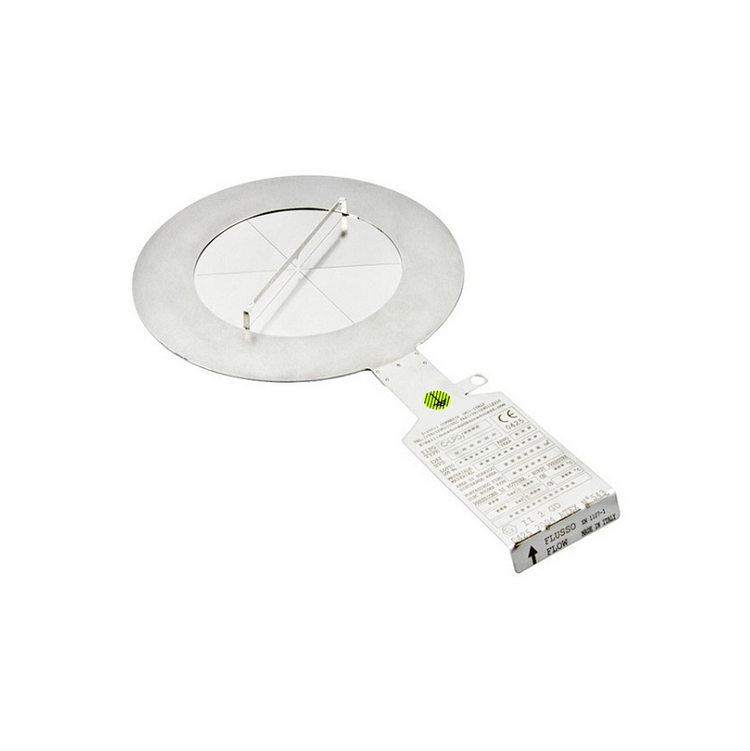

the protection of biogas digesters. FSLPDULP rupture discs are flat
composite discs formed by four parts: a slotted, perforated metal part a
seal membrane (usually in PTFE but also available in many other
metallic or non-metallic materials) a protection section a calibration
ring with blades to improve membrane rupture FSLPDULP discs open without
fragmentation to prevent product contamination and can be customised to
meet a broad range of non-standard specifications and applications.
FSLPDULP discs can be designed: for dual pressure and vacuum protection
to resist vacuum or counter-pressure.
Sizes: 2" (DN50) to 20" (DN500)
Materials: Stainless steel, Alloy 201, Alloy 400, Alloy 600, Alloy 625, Alloy C276, Titanium / Mebrane: PTFE, PFA
Rupture Pressure: 5 - 500 millibar g (depending on material and diameter)
Krl:
Tolerance: +/- 5 % to +/- 20%
Temperature: up to 265 °C
Operating Margin: Up to 60%
Vacuum Support: Available
Fragmentation: No (membrane only)
Use under valve: Yes
Corrosion Resistance: Good - can be protected with a PTFE membrane
Linings: Yes
Container: Mounted between flanges
Rupture Sensor: Electrical, Magnetic, Inductive, Optical
ATEX EX II 2 GD Certification: Available
