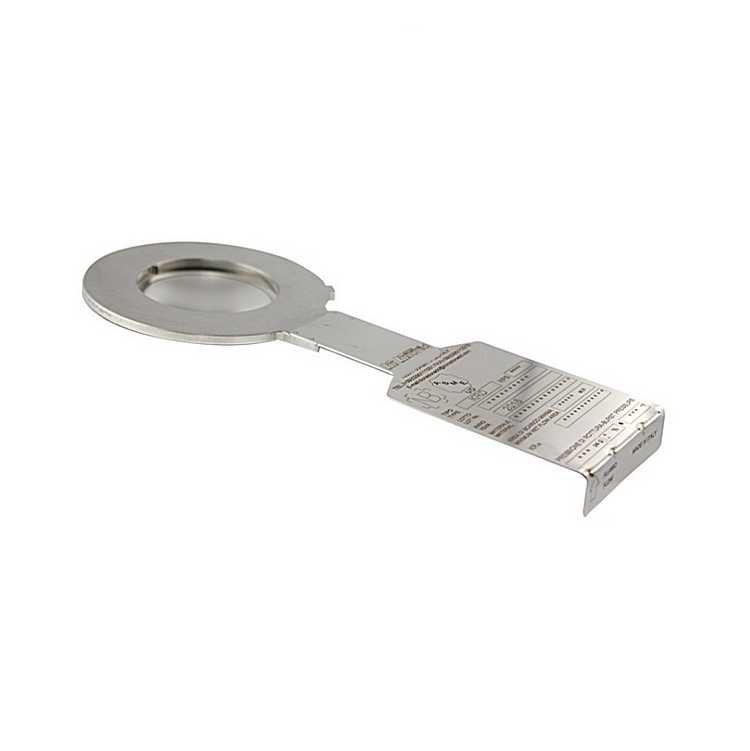

These discs make use of the latest sector technology. The camber of
the convex disc is not modified by the operating pressure except on
reaching reverse pressure. This device works with ratios of up to 95%
between operating and rupture pressure and withstands thousands of
cycles without jeopardising its reliability. At the moment of reversion,
the disc ruptures in a few thousandths of a second along the scored
line without fragments and with full opening. These discs have lower
sensitivity to variations in temperature with respect to conventional
discs and therefore are very useful in applications with large
temperature variations.
Thanks to their innovative design, these rupture discs can be used in
the presence of liquids only, in cycling and pulsating conditions
without reduction of safety margins. In addition, they are especially
suitable for isolating safety valves. The wide choice of materials and
the thickness used make FSKRDRA discs very resistant to corrosion.
Greater protection can be obtained using a PTFE lining, which can be
applied to the process side of the disc.
Vacuum support is not required and they are able to resist high counter-pressures.
Sizes: 1" (DN25) to 36" (DN900)
Materials: Stainless steel, Alloy 201, Alloy 400, Alloy 600, Alloy 625, Alloy C276, Titanium
Rupture Pressure: 0,41 bar g (6 psi g)- 137 bar g (2000 psi g) (depending on material and diameter)
Krl: 0.48
Tolerance: +/- 5 % to +/- 20%
Temperature: -196 degC to 480 degC
Operating Margin: 90% - Able to reach 95% depending on the service conditions
Fragmentation: No (will not break up on bursting)
Use under valve: Yes
Corrosion Resistance: Very good
Linings: Yes
Container: FSHR/A, FSHR/P, FSHR/F, FSHTC
Rupture Sensor: Electrical, Magnetic, Inductive, Optical
ASME Certification (UD Stamp): Available
PED Certification (CE Stamp): Available
ATEX EX II 2 GD Certification: Available
