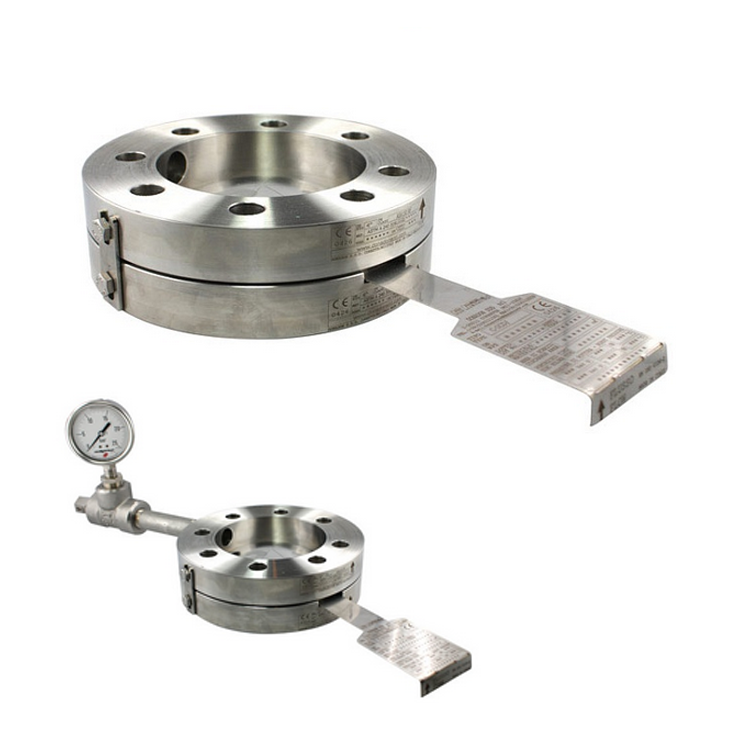

These disc holders are designed in order to ensure maximum reliability
to rupture discs and are easy to install even where access to the pipes
is horizontal, allow for verification of proper installation. Upon
request, these disc holders can be verified in our laboratories and
supplied pre-assembled with their own rupture discs, ready for direct
insertion in the plant.
Suitable for Discs: FSSCR, FSY90, FSKRD
Sizes: 1" (DN25) to 40" (DN1000)
Materials: Carbon steel, Stainless steel (316L), Alloy 201, Alloy 400, Alloy 600, Alloy C276, Titanium, Tantalum
Linings: Yes (PTFE or glass fibre reinforced PTFE)
Accessories: Nipples, T connectors, excess flow valve, pressure gauge.
Notes: The holders for reverse acting discs can be larger to protect the dome on the disc.
