This is a non-stocked item, please call +44 (0)1482 601030 or email sales@flowstar.co.uk for price and availability.

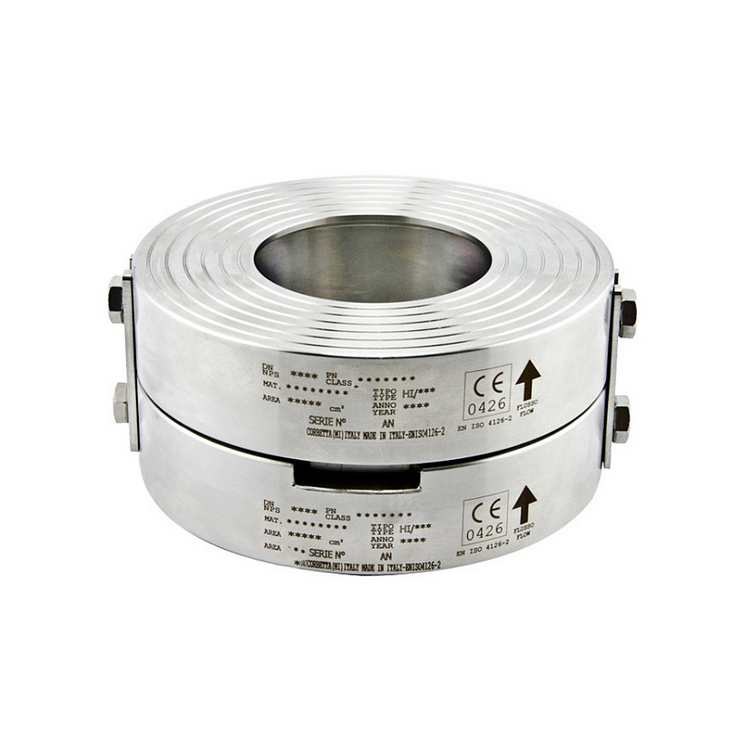

These disc holders are designed in order to ensure maximum reliability to our rupture discs. Disc holders designed to be mounted between flanges have an internal diameter sized in order to allow full opening of the disc and total transmission on the minimal discharge area an external tangent diameter to the bolts in order to facilitate centring between flanges. These disc holders are also provided with two stainless steel assembly plates.
Suitable for Discs: FSSCR, FSY90, FSKRD
Sizes: 3/4" (DN20) to 4" (DN100)
Materials: Carbon steel, Stainless steel (316L), Alloy 201, Alloy 400, Alloy 600, Alloy C276, Titanium, Tantalum
Linings: Yes (PTFE or glass fibre reinforced PTFE)
Accessories: Nipples, T connectors, excess flow valve, pressure gauge
Notes:
