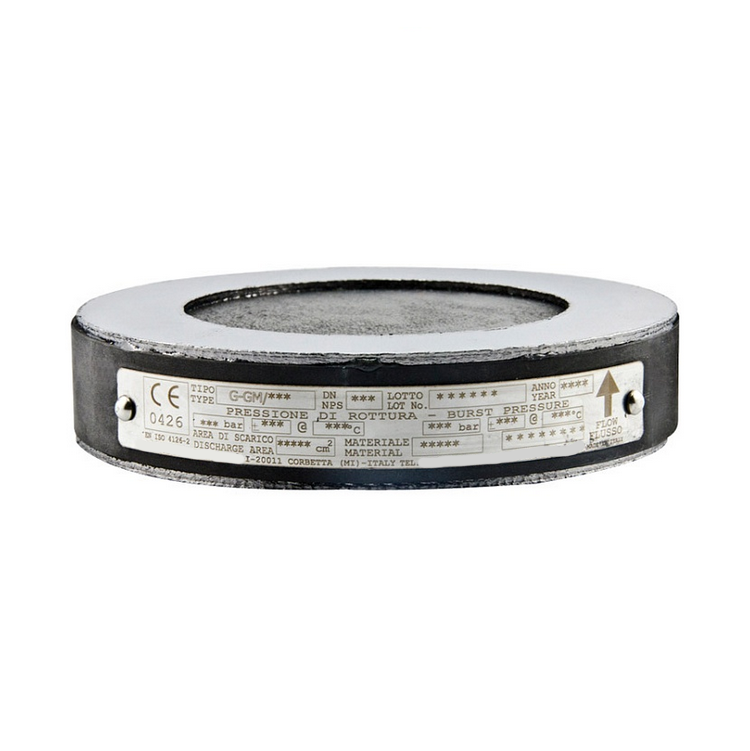

FSGGMG monoblock graphite rupture discs are versatile and suitable for
numerous applications and can be directly inserted between flanges.
Graphite rupture discs are very resistant to aggressive fluids and low
bursting pressure sensitivity to temperature variations. Discs are made
of very high purity graphite impregnated with phenolic resins in order
to make the product impermeable. Opening is total but with
fragmentation. Vacuum support is required for rupture pressures below
1.7 barg. Discs are self-supporting at higher calibrations.
Sizes: 1" (DN25) to 24" (DN600)
Materials: Graphite and Stainless steel
Rupture Pressure: 0.017 – 15 bar g (depending on diameter)
Tolerance: +/- 5 % to +/- 20%
Temperature: -60 °C to 180 °C
Operating Margin: Up to 75%
Vacuum Support: Available
Fragmentation: Yes
Use under valve: No
Corrosion Resistance: Very good - can be protected with a PTFE membrane
Linings: No
Container: Included, mounted between flanges
Seals: Available in graphite
Rupture Sensor: Electrical
PED Certification (CE Stamp): Available
