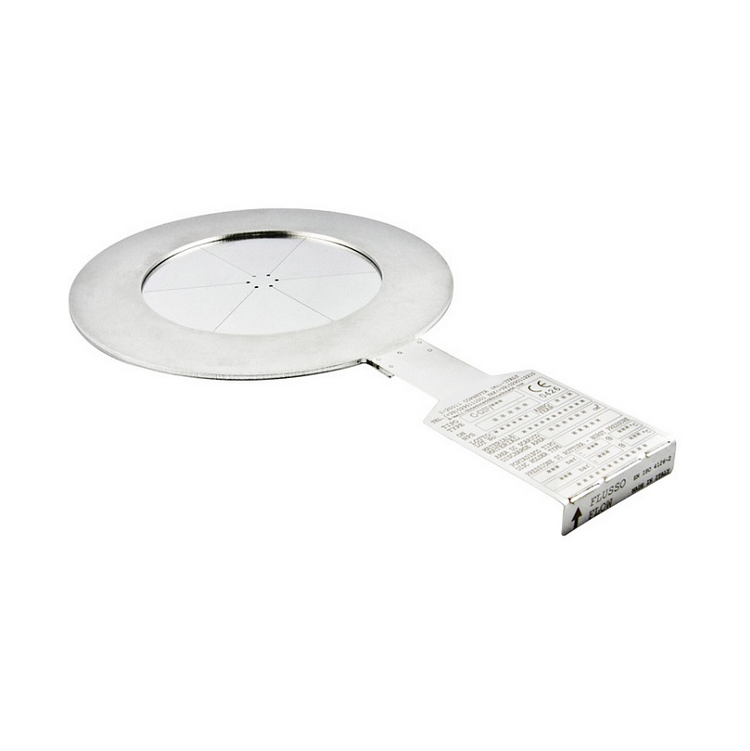

FSDIFULP rupture discs are composite conventional discs formed by four
parts: a slotted, perforated metal part a seal membrane (usually in PTFE
but also available in many other metallic or non-metallic materials) a
protection section a calibration ring This disc has been designed to be
mounted between flanges. It is excellent for use with gas and liquids in
static conditions and excellent for low pressures. FSDIFULP discs react
to excessive pressure with total opening in a few milliseconds. They
are therefore recommended for valve protection. Supports may be provided
for vacuum or counter-pressure protection. Composite rupture discs may
also be used for simultaneous protection from pressure and vacuum.
Sizes: 2" (DN50) to 40" (DN1000)
Materials: Stainless steel, Alloy 201, Alloy 400, Alloy 600, Alloy 625, Alloy C276, Titanium
Rupture Pressure: 0.5 - 5 bar g (depending on material and diameter)
Krl:
Tolerance: +/- 5 % to +/- 20%
Temperature: membrane in PTFE/PFA max 265°C, up to 480°C (depending on the membrane)
Operating Margin: Up to 70%
Fragmentation: No (membrane only)
Use under valve: Yes
Corrosion Resistance: Good - can be protected with a PTFE membrane
Linings: Yes
Container: Mounted between flanges
Rupture Sensor: Electrical, Magnetic, Inductive, Optical
PED Certification (CE Stamp): Available
ATEX EX II 2 GD Certification: Available
Notes:
