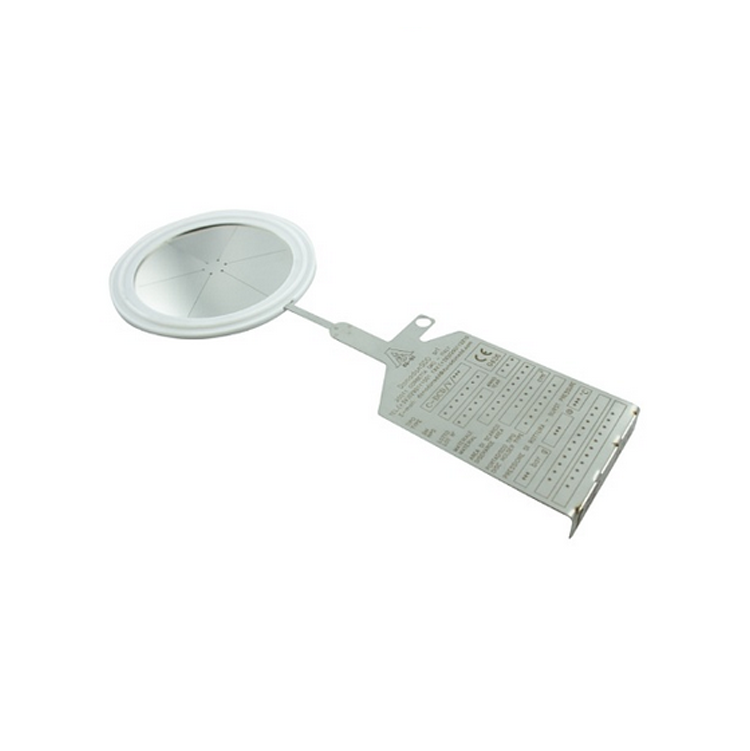

These rupture discs for aseptic applications consists of a slotted, perforated metal part, a seal membrane (usually in PTFE but also available in a wide range of materials), and a protection section. This disc is excellent for use with gas and liquids under static conditions and also for low pressures. The FSDCDS disc reacts to overpressures with total opening in a few milliseconds and without fragmentation. Supports can be provided for vacuum and counter-pressure protection. These composite rupture discs can protect against vacuum and pressure simultaneously. PTFE gaskets, which are certified in compliance with FDA and USP class VI, 3-A and Eu 10/2011 regulations, facilitate the installation in Clamp fittings (sanitary, Tri-Clamp, Tank Connection). FSDCDS rupture discs are designed for C.O.P. (Clean-Out-Of-Place) applications.
Specification
Sizes: 1" (DN25) to 8" (DN200)
Materials: Stainless steel, Alloy 201, Alloy 400, Alloy 600, Alloy 625, Alloy C276, Titanium
Rupture Pressure: 0,1 bar g - 7 bar g (depending on material and diameter)
Krl:
Tolerance: from +/- 5 % to +/- 20%
Temperature: Gaskets in PTFE (max 265°C)
Operating Margin: up to 80%
Fragmentation: No (will not break up on bursting)
Use under valve: Yes
Corrosion Resistance: Very good
Linings: Yes
Container: FSHTC
Rupture Sensor: Electrical
PED Certification (CE Stamp): Available
ATEX EX II 2 GD Certification: Available
3-A Compliance: Available
