This is a non-stocked item, please call +44 (0)1482 601030 or email sales@flowstar.co.uk for price and availability.

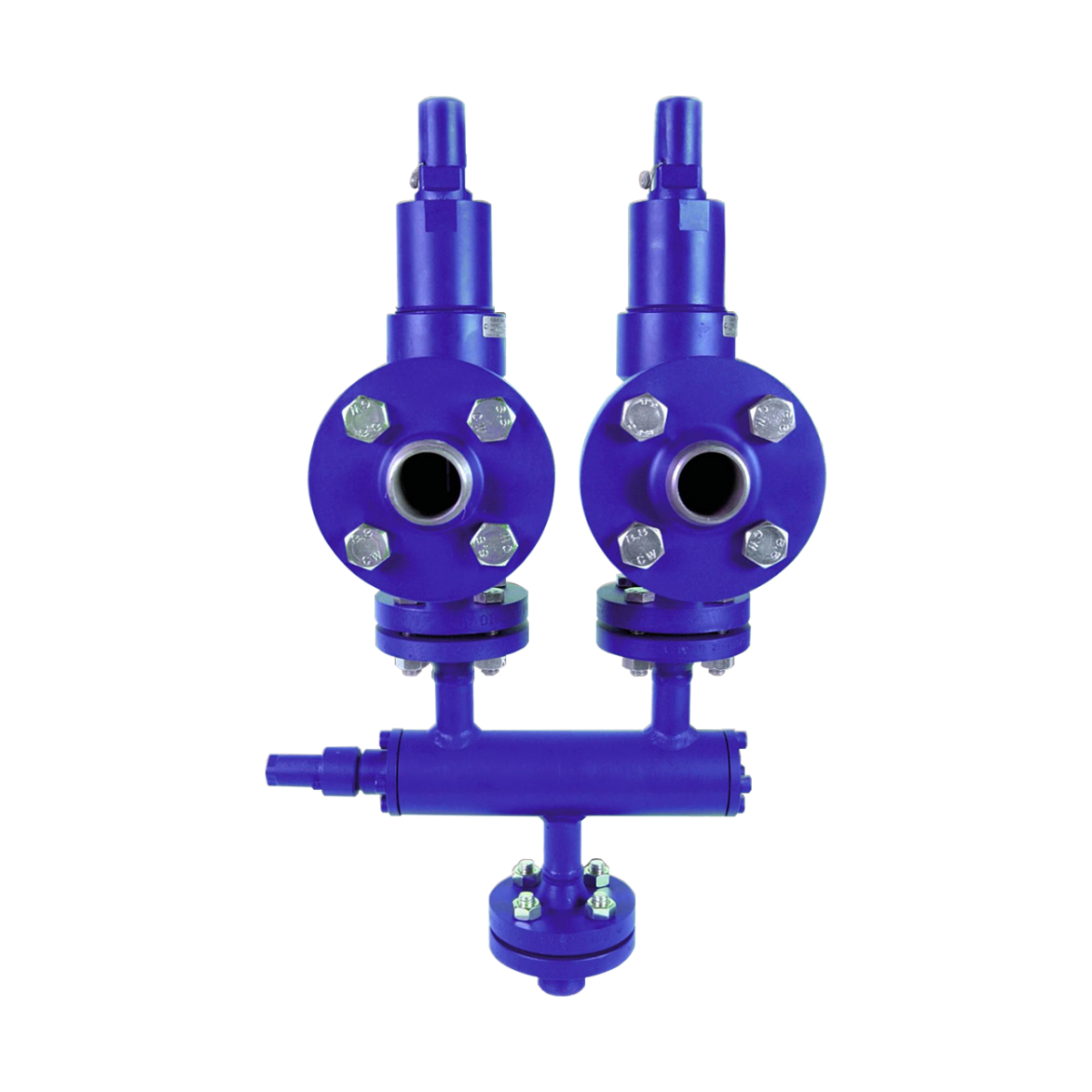

The 3-way valve enables one Safety Valve to be checked / maintained whilst the other valve is protecting the system.
Specification
Sizes: 1/2" to 2.1/2"
Connections: Flanged or Screwed
Materials: Steel or Stainless Steel
Medium: Glycol-based cold brine refrigerant EN 378 p. 1, e.g. NH3, R134a, R290 (propane), R507, blends with refrigerator oil, neutral, gas and liquid media, glycol-based cold brine
Set Pressure: 4 to 63 Barg (depending upon the size)
Temperature: -60 to +180 degC Max
Design:
Notes:
