Product Description

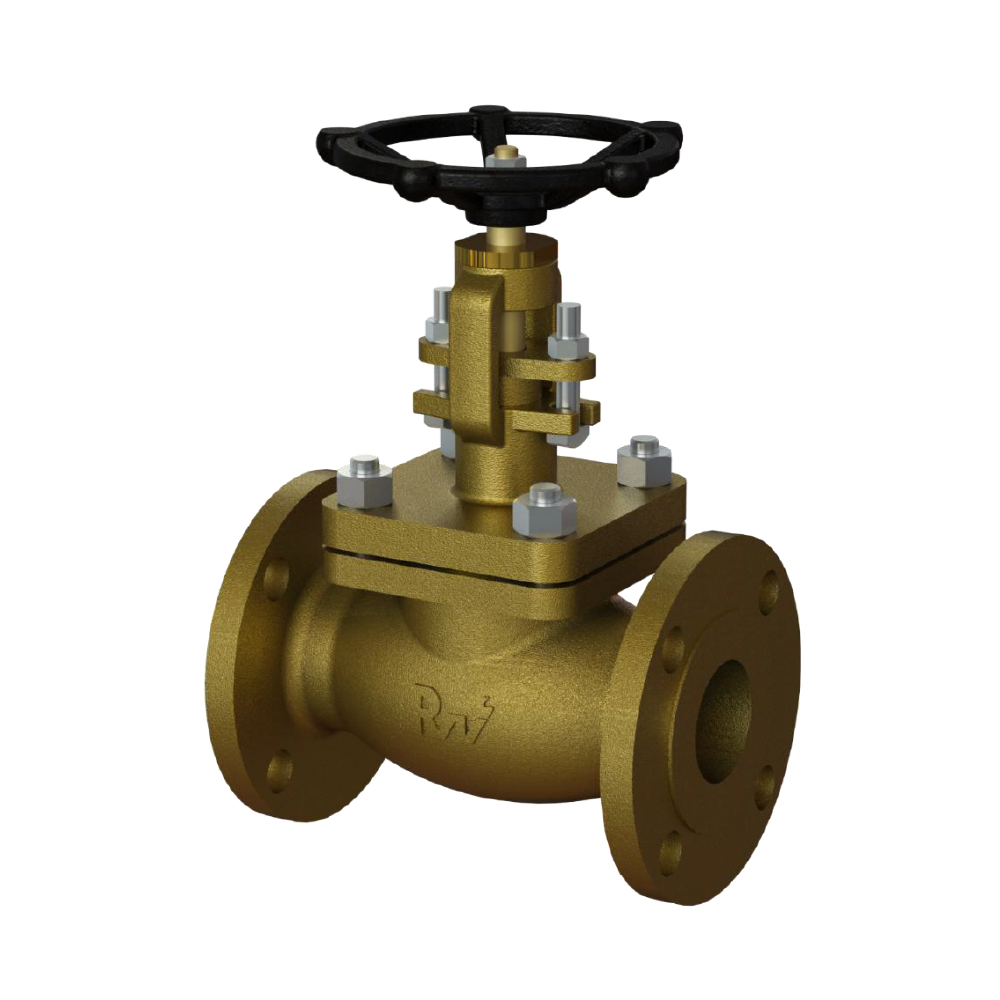

Globe valves are linear motion shut-off valves used to control or stop fluid flow. They comprise a body, bonnet, with an internal plug, stem and seat ring. The design of globe valves allows for tight sealing capability even under low-pressure differentials, making them ideal for applications that require precise throttling. Globe valves are primarily used in isolation, flow control and pressure-regulated applications.
Features
Globe Valves are versatile, featuring an angle-seated design that delivers highly effective shut-off capabilities, withstanding wear and tear. Unlike the gate valve, the globe valve can regulate flow. They are available in union or bolted bonnet styles.
The Globe Valve disc moves in parallel with the flow and uses a stem and disc assembly to regulate fluid flow. When the handwheel is turned, the valve stem lifts and moves the disc which restricts or allows flow depending on its position.
Materials
Body/Bonnet: NAB (ASTM B148 C95800)
Seat: NAB (ASTM B148 C95800 / ASTM B150 C63200) MONEL (ASTM A494 GR. M35-1 / ASTM B865 N05500)
Stem: NAB (ASTM B150 C63200) / MONEL (ASTM B865 N05500)
Gasket: PTFE / Graphite
Technical Data #150
Design Standard: MSS SP80 / BS 5154
Size: DN15 TO DN300
Flanges: ASME B16.5 #150
End To End: ASME B16.10 #150
Testing: EN 12266-1, API 598
Max pressure: 19 BAR / Min Temperature: -29°C
Max pressure: 7.9 BAR / Min Temperature: 260°C
Material Test Certification: BS EN 10204-3.1
Technical Data #300
Design Standard: MSS SP80 / BS 5154
Size: DN15 TO DN350
Flanges: ASME B16.5 #300
End To End: ASME B16.10 #300
Testing: EN 12266-1, API 598
Max pressure:- 49.6 BAR / Min Temperature:- -29°C
Max pressure:- 20.6 BAR / Min Temperature:- 260°C
Material Test Certification: BS EN 10204-3.1
