Product Description

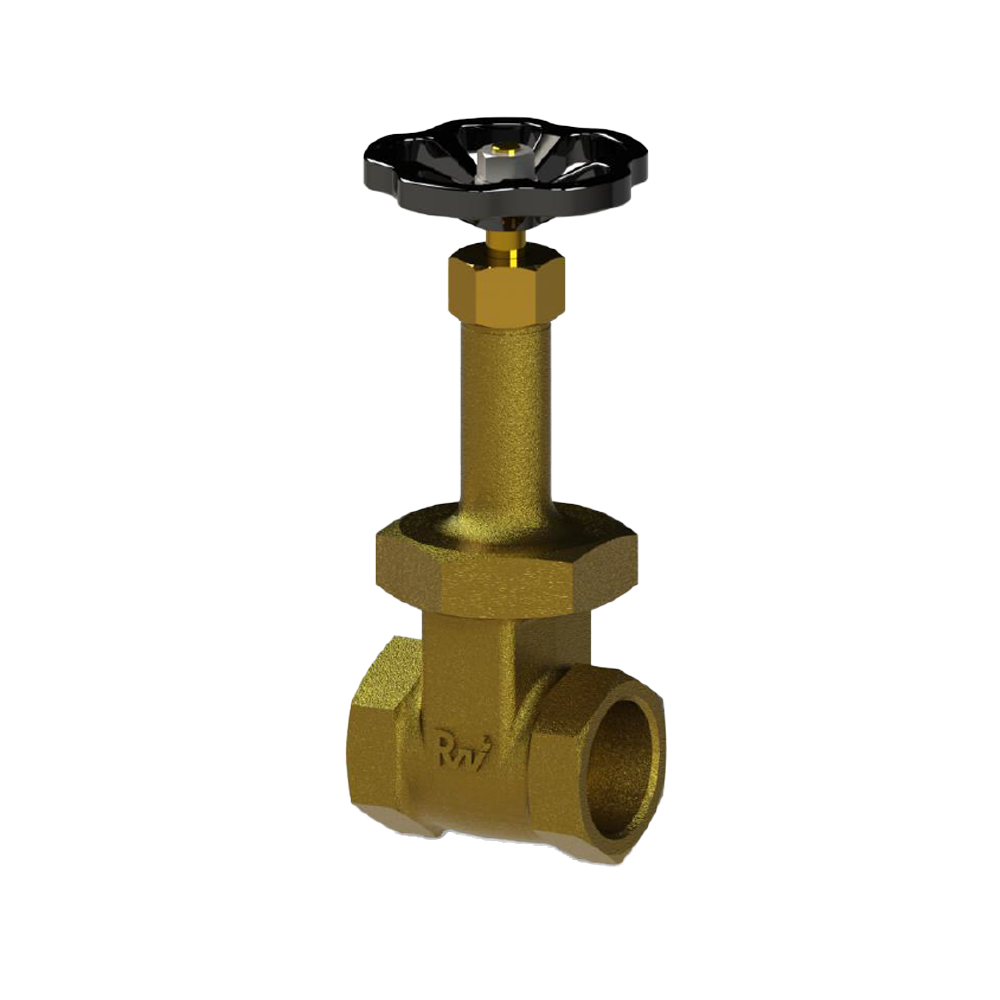

Gate valves are primarily designed for on-off services. Gate Valves consist of Body, Bonnet, Gate, Stem inside screw & Yoke, rising Stem with Non Rising Hand wheel, Integral seat as standard with options for Renewable Seats. Open & Closed Indicator with lockable Handwheel.
Features
Gate valves offer positive shutoff with minimal pressure drop; this m akes them ideal for controlling liquid or gas flow in various applications. They’re also highly effective and easy to maintain due to their robust construction and simple design.
Gate valves are operated manually or by an automated device such as a motor, solenoid, actuator, etc. When the gate is closed, it acts as a barrier and blocks flow. When open, the gate swings away from the seat allowing full flow through the valve. When closed, fluid flow is completely blocked.
Materials
Body/Bonnet: NAB(ASTM B148 C95800)
Stem: NAB (ASTM B150 C63200) / MONEL (ASTM B865 N05500)
Handwheel: SS (ASTM A351 CF8M)
Technical Data #150/PN32
Design Standard: MSS SP 80 / BS 5154 / BS EN 12288
Size: DN15 TO DN80
End Connection: ASME B1.20.1
Face To Face: As Per Mfg.
Testing: EN 12266-1, API 598
Max pressure: 19 / 32 BAR / Min Temperature: -29°C / -10 TO 66°C
Max pressure: 7.9 / 14 BAR / Min Temperature: 260°C
Material Test Certification: BS EN 10204-3.1
Technical Data #300
Design Standard: MSS SP 80 / BS 5154 / BS EN 12288
Size: DN15 TO DN80
End Connection: ASME B1.20.1
Face To Face: As Per Mfg.
Testing: EN 12266-1, API 598
Max pressure: 49.6 BAR / Min Temperature: -29°C
Max pressure: 20.6 BAR / Min Temperature: 260°C
Material Test Certification: BS EN 10204-3.1
