This is a non-stocked item, please call +44 (0)1482 601030 or email sales@flowstar.co.uk for price and availability.

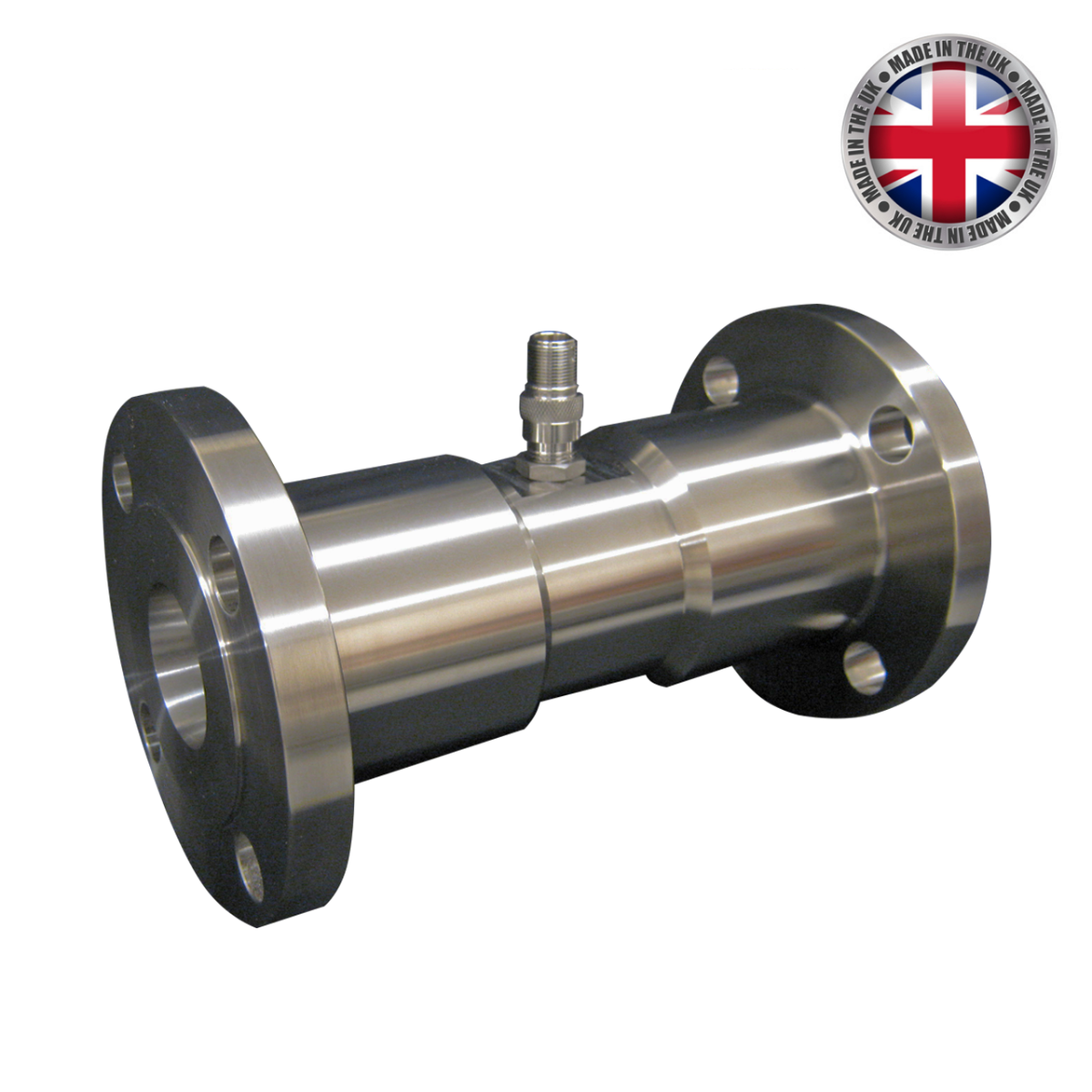

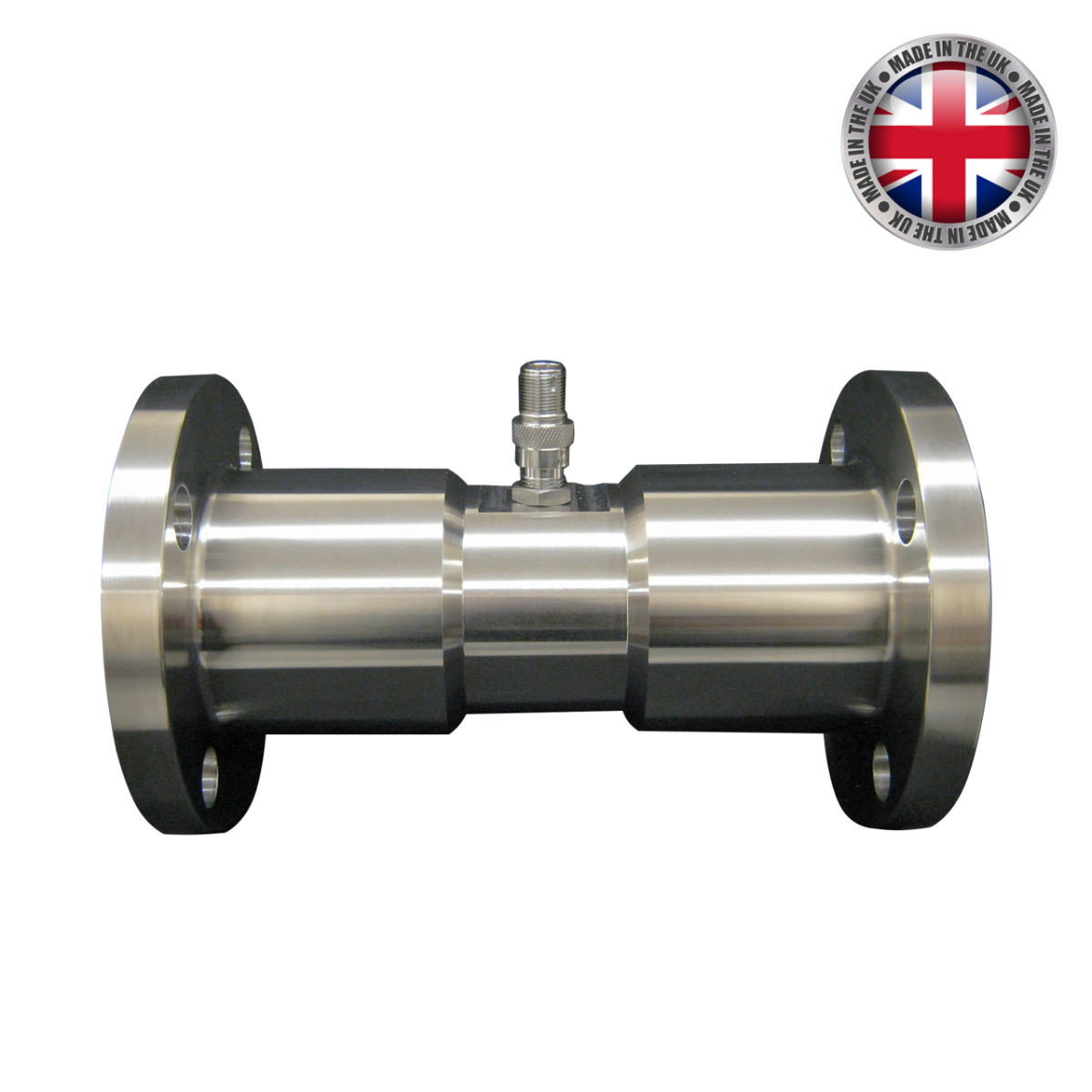

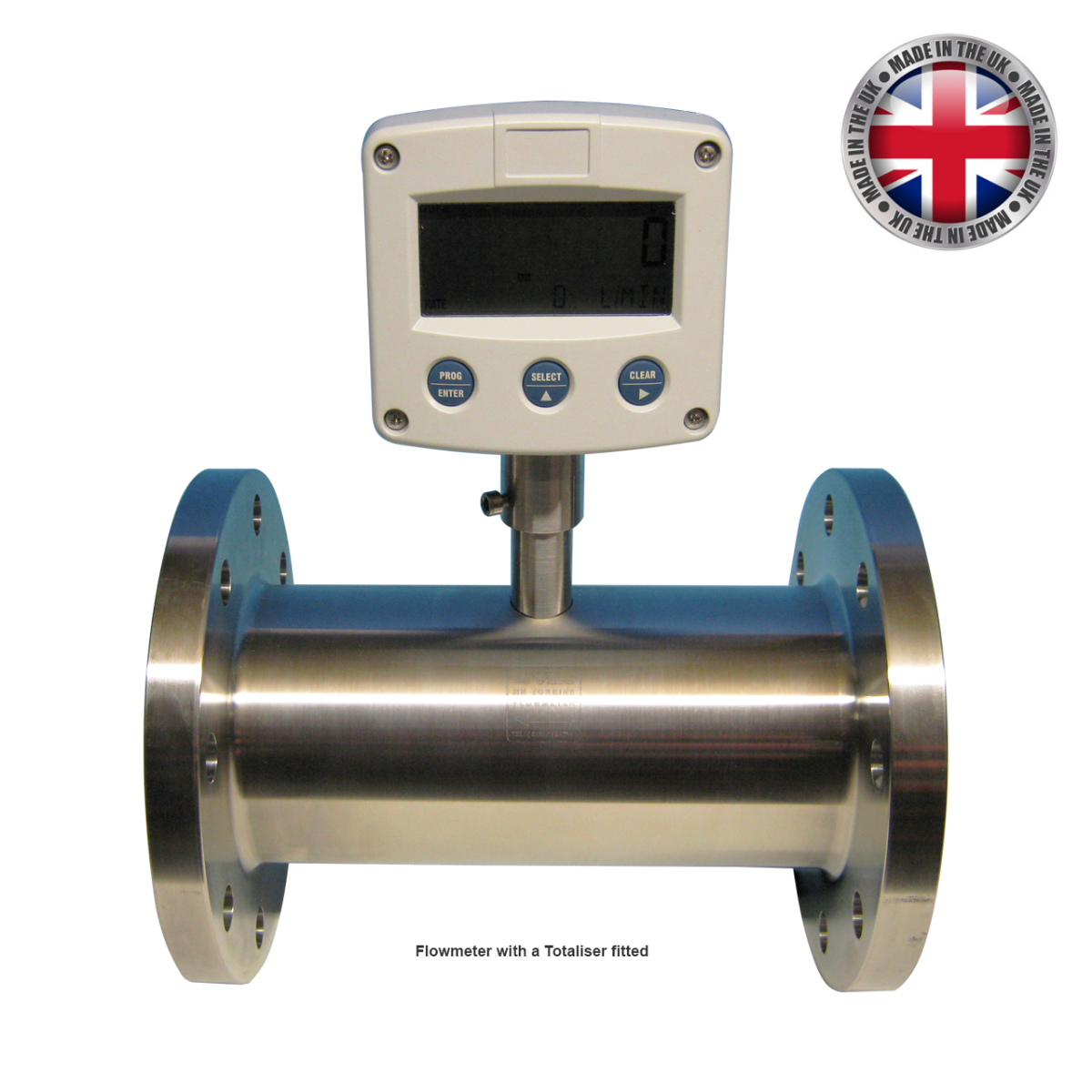

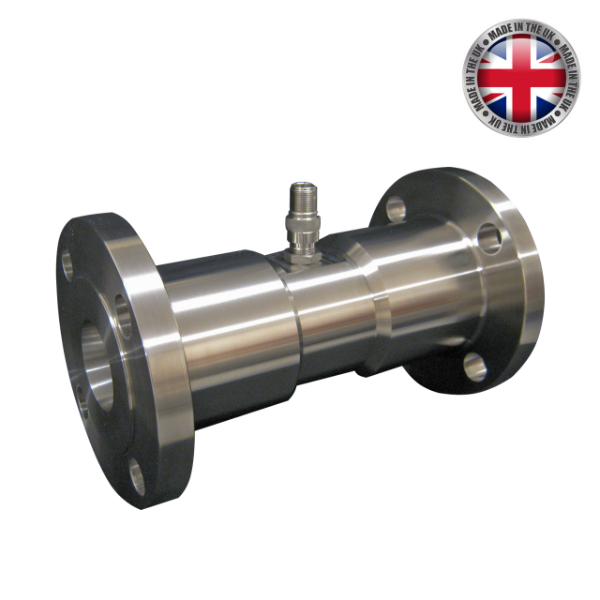

These Flanged Liquid Turbine Flow Meters can be used with liquids such as water, light oils, solvents and low viscosity chemicals.
Sizes: 1/2" to 8"
Connections: ANSI or PN flanged
Pressures: Max subject to the flange rating / 0.5 Barg pressure drop at max flow
Flow Range: 1 to 18000 Litres / Minute (depending upon the size)
Materials: Stainless Steel Rotor & Body (see datasheet)
Accuracy: +/- 0.5% Linearity / +/- 0.1% Repeatability
Temperature: Standard -30 degC to 110 degC / High Temp -30 degC to 232 degC
Notes: ATEX approved. Individual calibration certificates.
