This is a non-stocked item, please call +44 (0)1482 601030 or email sales@flowstar.co.uk for price and availability.

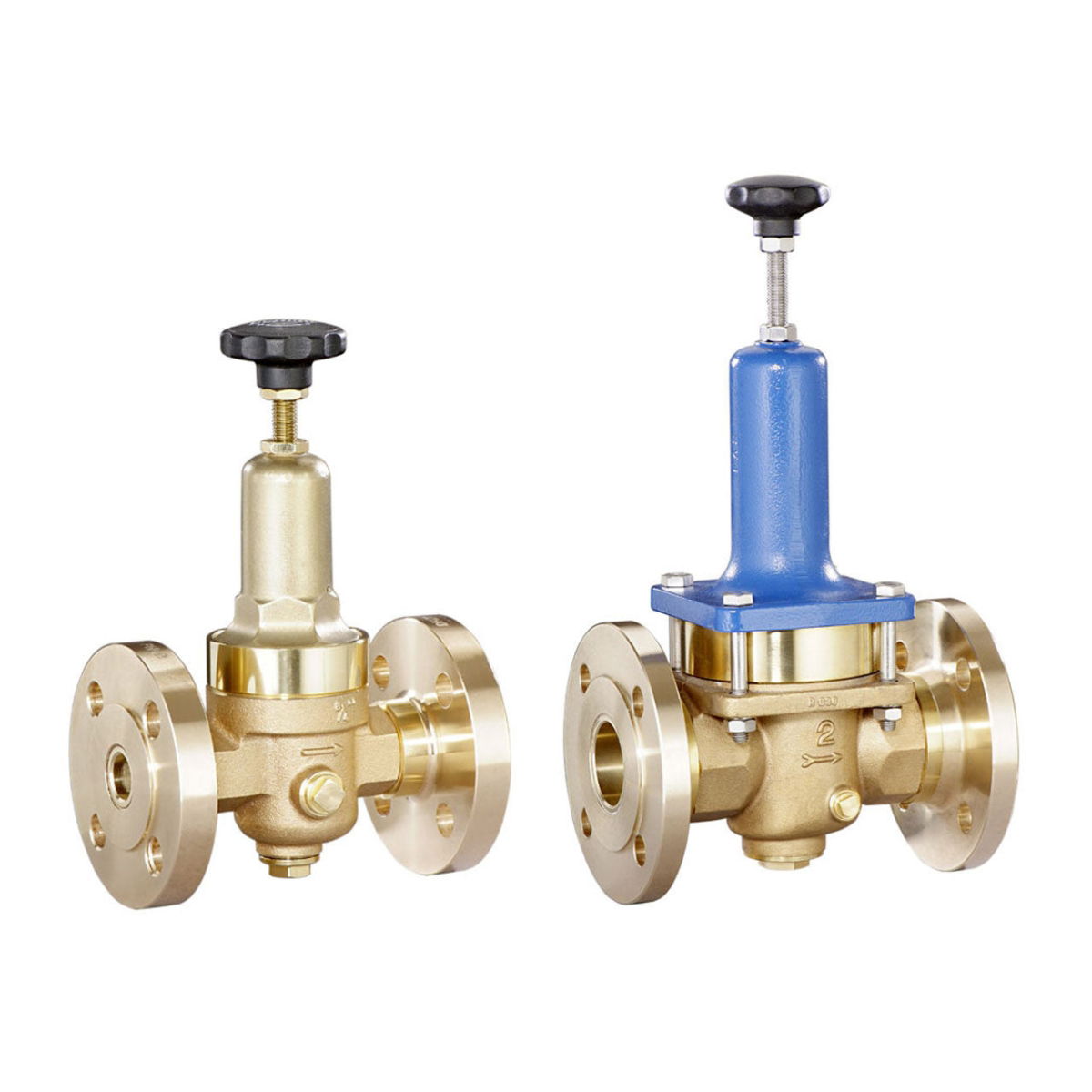

Specification
Sizes: 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1.1/4" (DN32), 1.1/2" (DN40), 2" (DN50), 2.1/2" (DN65) and 3" (DN80)
Connections: Flanged PN25 Inlet x Flanged PN25 Outlet
Materials: Red Bronze Body / Bonnet: Brass upto DN32 then from DN40 Cast Iron
Disk:
Joints & Seals: Diaphragm: NBR, Seals: NBR
Medium: Seawater
Inlet Pressure (Max): 25 Barg
Outlet Pressure Range: 1.5 to 6 Barg
Cv Range:
Temperature: 75 degC Max
Approvals: PED 97/23/CE category I
Notes: Highest Reduction Ratio: 6:1. We have a sizing calculator in the TECHNICAL INFO section on the menu bar above.
