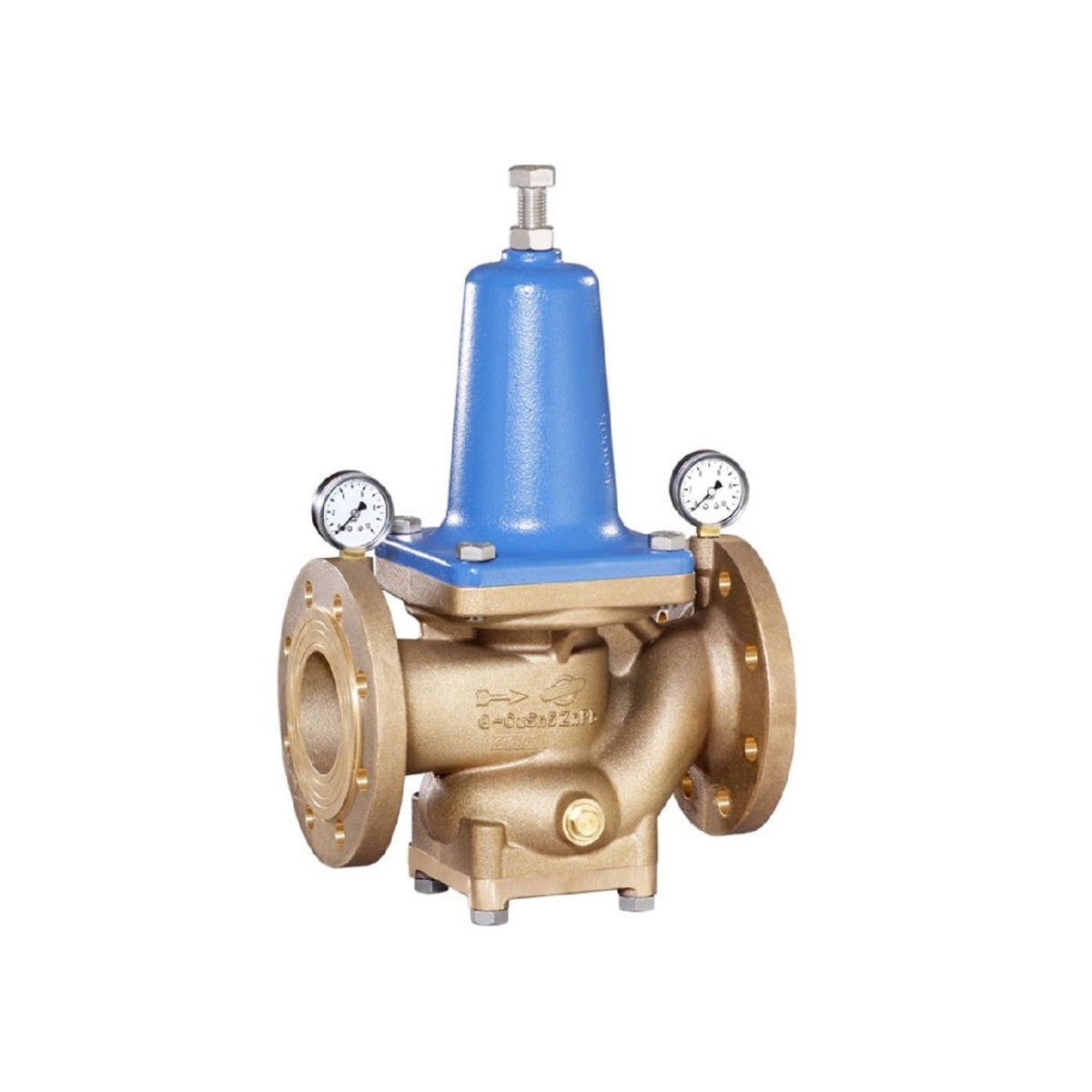

These are a stock item. Order by 5pm Monday to Thursday and 4.30pm Friday for same day despatch. Specification Sizes: DN80, DN100
Connections: Flanged PN16 Inlet x Flanged PN16 Outlet
Materials: Gunmetal Body / Bonnet: Cast Iron
Disk:
Joints & Seals: Diaphragm: NBR, Seals: NBR
Medium: Gases & Liquids i.e. Water, neutral non-viscous fluids, compressed air, nitrogen, non-combustible gases. Not suitable for steam.
Inlet Pressure (Max): 16 Barg
Outlet Pressure Range: 0.5 to 9 Barg
Cv Range:
Temperature: 100 degC Max
Approvals: PED 97/23/CE category I
Notes: (a) Built in gauge ports (b) Minimum pressure drop between inlet and outlet: 1 Barg (c) We have a sizing calculator in the TECHNICAL INFO section on the menu bar above.
