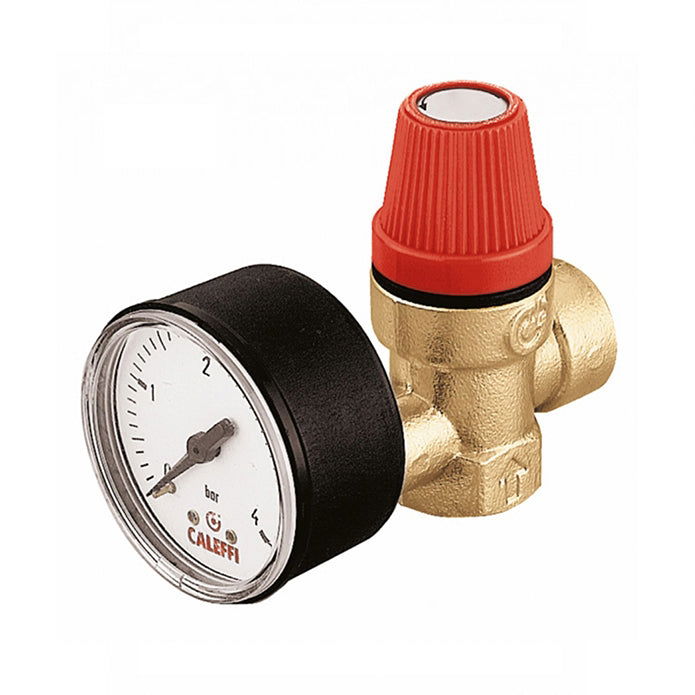

The Altecnic / Caleffi series 313 safety relief valves are used in domestic hot water systems to protect the hot water cylinder and in heating systems to protect the boiler and other components. The valve is selected for the required set pressure. As the pressure rises, when the discharge pressure is reached the valve opens and discharges to the atmosphere, preventing the pressure within the system reaching levels which would be dangerous for the boiler, hot water storage cylinder and any personnel in the adjacent vicinity. This valve comes supplied with a pressure gauge.
Specification
Size: 1/2" x 1/2"
Connections: BSP Female Inlet x BSP Female Outlet
Materials: Brass
Medium: Air and Water
Set Pressure: 3 Barg
Discharge Flowrate: 142.1 kg/hr
Max Boiler Rating: 82.5 kW
Temperature: +5 to +110 degC
Product Code: 313430
Notes: WRAS approved, CE marked, Pressure gauge included
